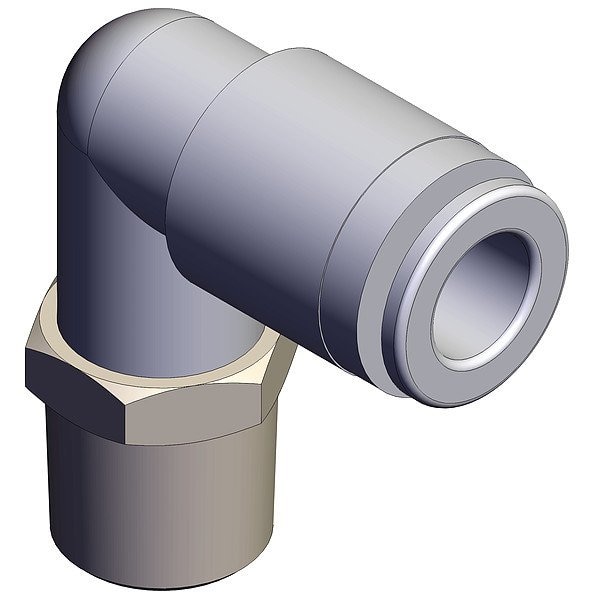

Push-Fit Elbow, Elbow
Mfr # KPL08-02
Zoro # G316245703
product price:Â $5.39
/ea
Sold in multiples of 2 for $10.78
Key Features
Standards
RoHS
Application
Medical, Vacuum
Fitting Shape
Elbow
Fitting Side 1 Connection Type
Push-to-Connect
Compatible Tube Material
PFA, Polyolefin, Polyurethane
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
KPL08-02
Zoro #
G316245703
UPC #
-
Country of Origin
Singapore
Dimensions
Center-to-End 1 Length
25 5/16 mm
Fitting Thread Size
1/4"
Center-to-End 2 Length
26 19/32 mm
Fitting Side 1 Tube Outer Diameter
8 mm
Overall Length
14 mm
Fitting Side 2 Pipe Size
1/4 in
Details
Item
Push-Fit Elbow
Standards
RoHS
Application
Medical, Vacuum
Fitting Shape
Elbow
Fitting Side 1 Connection Type
Push-to-Connect
Compatible Tube Material
PFA, Polyolefin, Polyurethane
Connector Type
Union
Operating Temperature - Minimum
-4 Degrees F
Release Type
Button
Fitting Material
Polypropylene
Operating Pressure - Maximum
1 MPa
For Media Type
Air, Gases, Non-Potable Water
Operating Temperature - Maximum
140 Degrees F
Series
KP
Fitting Side 2 Connection Type
BSPT
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Color
White
Fitting Features
Swivel
Description
Push-Fit Elbow, Application Medical, Vacuum, Fitting Material Polypropylene, Fitting Thread Size 1/4 In., Material Grade Not Applicable, Color White, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Overall Length 14 mm, Release Type Button, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material PFA, Polyolefin, Polyurethane, System of Measurement Not Applicable
Restrictions
