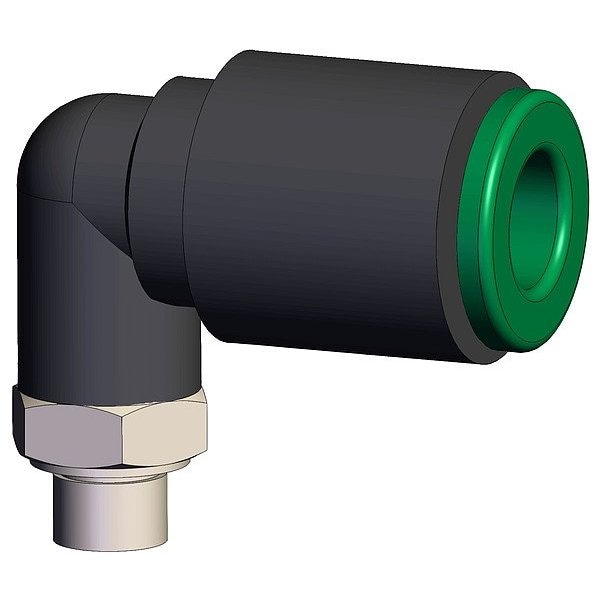

Push-Fit Elbow, Elbow
Mfr # KRL06-M5
Zoro # G016245751
product price:Â $10.15
/eaKey Features
Standards
RoHS
Application
Vacuum
Fitting Shape
Elbow
Color
Black
Fitting Material
Polybutylene
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- KRL06-M5
- Zoro #
- G016245751
- UPC #
- -
- Country of Origin
- Singapore
Dimensions
- Fitting Side 1 Tube Outer Diameter
- 6 mm
- Overall Length
- 10 13/32 mm
- Fitting Side 2 Pipe Size
- 5 mm
- Fitting Thread Size
- M5x.08
- Wire Rope Length
- 10 13/32 mm
Details
- Item
- Fitting, Male Elbow Spl
- Standards
- RoHS
- Application
- Vacuum
- Fitting Shape
- Elbow
- Color
- Black
- Fitting Material
- Polybutylene
- Release Type
- Collet
- Resistance Properties
- Flame-Resistant
- For Media Type
- Compressed Air, Non-Potable Water
- Series
- KR
- Operating Temperature - Maximum
- 140 Degrees F
- Operating Pressure - Maximum
- 1 MPa
- Operating Temperature - Minimum
- 23 Degrees F
- Compatible Tube Material
- Polyurethane, Nylon
- Fitting Side 1 Connection Type
- Push-to-Connect
- Fitting Side 2 Connection Type
- UNF
- Fitting Features
- Swivel
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Not Included
- Connector Type
- Adapter
Description
Push-Fit Elbow, Application Vacuum, Fitting Material Polybutylene, Fitting Thread Size M5x.08, Material Grade Not Applicable, Color Black, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Overall Length 10 13/32 mm, Release Type Collet, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material Polyurethane, Nylon, Resistance Properties Flame-Resistant, System of Measurement Not Applicable
