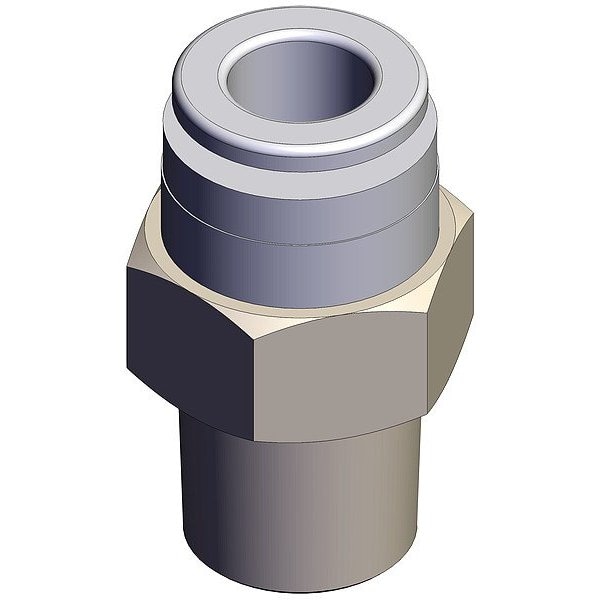

Push-Fit Fitting, Straight
Mfr # KPH08-02
Zoro # G416245733
product price:Â $3.99
/ea
Sold in multiples of 3 for $11.97
Key Features
Standards
RoHS
Application
Medical, Vacuum
Fitting Shape
Straight
Overall Length
17 mm
Operating Temperature - Maximum
140 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- KPH08-02
- Zoro #
- G416245733
- UPC #
- -
- Country of Origin
- Singapore
Dimensions
- Overall Length
- 17 mm
- Fitting Thread Size
- 1/4"
- Fitting Side 1 Tube Outer Diameter
- 8 mm
- Fitting Side 2 Pipe Size
- 1/4 in
- Wire Rope Length
- 17 mm
Details
- Item
- Push-Fit Fitting
- Standards
- RoHS
- Application
- Medical, Vacuum
- Fitting Shape
- Straight
- Operating Temperature - Maximum
- 140 Degrees F
- Series
- KP
- Fitting Side 1 Connection Type
- Push-to-Connect
- Compatible Tube Material
- PFA, Polyolefin, Polyurethane
- Operating Temperature - Minimum
- -4 Degrees F
- For Media Type
- Air, Gases, Non-Potable Water
- Fitting Material
- Polypropylene
- Operating Pressure - Maximum
- 1 MPa
- Connector Type
- Union
- Release Type
- Button
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Not Included
- Fitting Side 2 Connection Type
- BSPT
- Color
- White
- Fitting Features
- Rigid
Description
Push-Fit Fitting, Application Medical, Vacuum, Fitting Material Polypropylene, Fitting Thread Size 1/4 In., Material Grade Not Applicable, Color White, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Overall Length 17 mm, Release Type Button, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material PFA, Polyolefin, Polyurethane, System of Measurement Not Applicable
