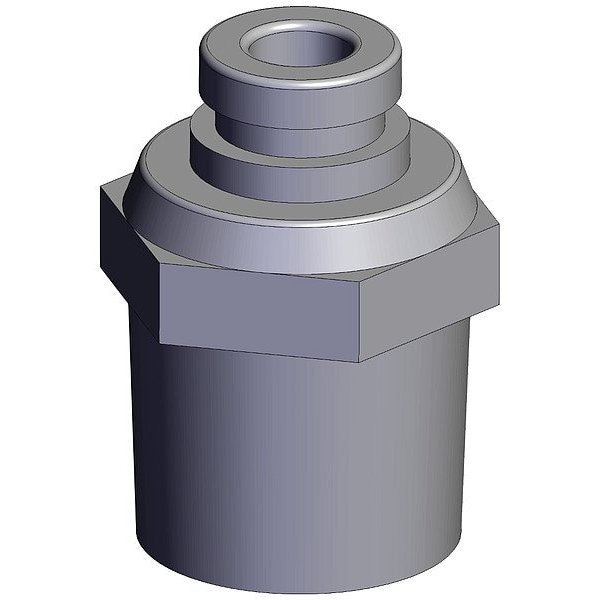

Push-Fit Fitting, Straight
- Mfr # KQG2H04-02S
- Zoro # G416244958
product price:Â
$
17.59
/ea
Key Features
Standards
RoHS
Fitting Shape
Straight
Overall Length
14 mm
Operating Temperature - Maximum
302 Degrees F
Series
KQG2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- KQG2H04-02S
- Zoro #
- G416244958
- UPC #
- -
- Country of Origin
- Japan
- Item
- Fitting, Metal One Touch, SS
- Standards
- RoHS
- Fitting Shape
- Straight
- Operating Temperature - Maximum
- 302 Degrees F
- Series
- KQG2
- For Media Type
- Air, Gases
- Resistance Properties
- Corrosion-Resistant
- Operating Pressure - Maximum
- 1 MPa
- Compatible Tube Material
- FEP, Nylon, PFA, Polyolefin, Polyurethane
- Material Grade
- 316
- Fitting Side 1 Connection Type
- Push-to-Connect
- Fitting Material
- Stainless Steel
- Operating Temperature - Minimum
- 23 Degrees F
- Connector Type
- Union
- Release Type
- Button
- Fitting Features
- Rigid
- Application
- Pneumatics
- Fitting Side 2 Connection Type
- BSPT
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Included
- Color
- Stainless Steel 316
- Wire Color
- Stainless Steel 316
Dimensions
- Overall Length
- 14 mm
- Fitting Side 1 Tube Outer Diameter
- 4 mm
- Fitting Thread Size
- 1/4"
- Fitting Side 2 Pipe Size
- 1/4 in
- Wire Rope Length
- 14 mm
- Length
- 14 mm
Description
Push-Fit Fitting, Application Pneumatics, Fitting Material Stainless Steel, Fitting Thread Size 1/4 In., Material Grade 316, Color Stainless Steel 316, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Included, Overall Length 14 mm, Release Type Button, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material FEP, Nylon, PFA, Polyolefin, Polyurethane, Resistance Properties Corrosion-Resistant
