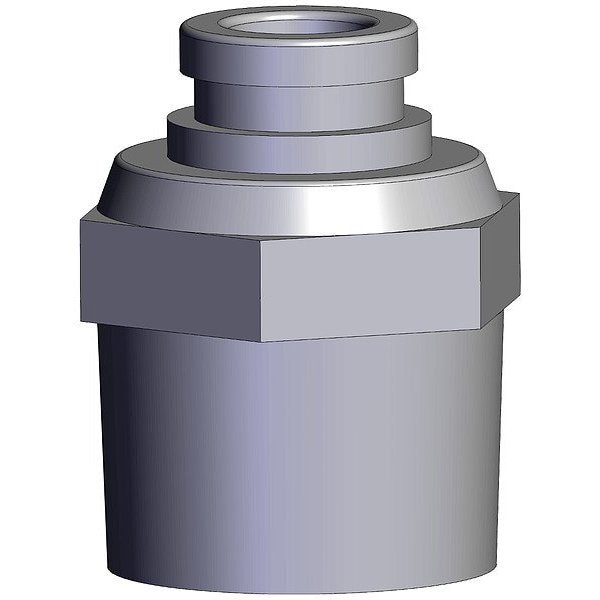

Push-Fit Fitting, Straight
Mfr # KQG2H06-03S
Zoro # G916244922
product price:Â $19.49
/eaKey Features
Standards
RoHS
Fitting Shape
Straight
Overall Length
17 mm
Operating Pressure - Maximum
1 MPa
Operating Temperature - Maximum
302 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- KQG2H06-03S
- Zoro #
- G916244922
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Length
- 17 mm
- Fitting Side 1 Tube Outer Diameter
- 6 mm
- Fitting Side 2 Pipe Size
- 3/8 in
- Wire Rope Length
- 17 mm
Details
- Item
- Fitting, Metal One Touch, SS
- Standards
- RoHS
- Fitting Shape
- Straight
- Operating Pressure - Maximum
- 1 MPa
- Operating Temperature - Maximum
- 302 Degrees F
- Material Grade
- 316
- Connector Type
- Union
- Resistance Properties
- Corrosion-Resistant
- Release Type
- Button
- Compatible Tube Material
- FEP, Nylon, PFA, Polyolefin, Polyurethane
- Fitting Side 1 Connection Type
- Push-to-Connect
- Fitting Material
- Stainless Steel
- Operating Temperature - Minimum
- 23 Degrees F
- Series
- KQG2
- For Media Type
- Air, Gases
- Application
- Pneumatics
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Included
- Fitting Features
- Rigid
- Fitting Side 2 Connection Type
- BSPT
- Color
- Stainless Steel 316
Description
Push-Fit Fitting, Application Pneumatics, Fitting Material Stainless Steel, Fitting Thread Size Not Applicable, Material Grade 316, Color Stainless Steel 316, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Included, Overall Length 17 mm, Release Type Button, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material FEP, Nylon, PFA, Polyolefin, Polyurethane, Resistance Properties Corrosion-Resistant
