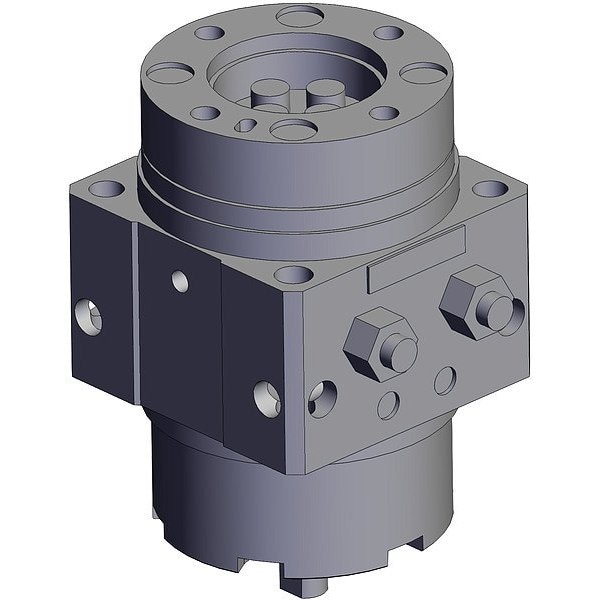

Rotary Table, BasicType
Mfr # MSUB20-90S
Zoro # G215377932
product price:Â
$
306.99
/ea
Free Shipping & Returns
Key Features
Minimum Operating Temperature
41 Degrees F
Bearing Retainer Material
Aluminum Alloy
Maximum Operating Temperature
140 Degrees F
Seal Material
NBR
Maximum Output Torque
20 N-m
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MSUB20-90S
- Zoro #
- G215377932
- UPC #
- -
- Country of Origin
- Japan
- Item
- Pneumatic Rotary Table
- Minimum Operating Temperature
- 41 Degrees F
- Bearing Retainer Material
- Aluminum Alloy
- Maximum Operating Temperature
- 140 Degrees F
- Seal Material
- NBR
- Maximum Output Torque
- 20 N-m
- Body Material Finish
- Anodized
- Plate Material
- Resin
- Air Inlet Type
- Metric Standard
- Cushion Type
- None
- Bearing Material
- Steel
- Weight
- 0.15 kg
- Minimum Operating Pressure
- 0.15 MPa
- Table Material Finish
- Anodized
- Cover Material
- Aluminum Alloy
- System of Measurement
- Metric
- Mounting Orientation
- Horizontal
- For Fluid Type
- Air
- Maximum Rotation Angle
- 90 Degrees
- Maximum Operating Pressure
- 1 MPa
- Number of Auto Switches
- None
- Body Material
- Aluminum Alloy
- Standards
- RoHS Compliant
- Table Material
- Aluminum Alloy
Description
Pneumatic Rotary Table, Bore Diameter 20 mm, Maximum Operating Pressure 1 MPa, Inlet Size M5, Air Inlet Type Metric Standard, Maximum Output Torque 20 N-m, Cushion Type None, Table Material Finish Anodized, Body Material Finish Anodized, Standards RoHS Compliant, Bearing Retainer Material Aluminum Alloy, Body Height 95 mm, Body Material Aluminum Alloy, Maximum Rotation Angle 90 Degrees , Number of Auto Switches None, Overall Length 56 mm, Maximum Operating Temperature 140 Degrees F
