Shop All Diaphragm Compressors & Vacuum Pumps
Gast

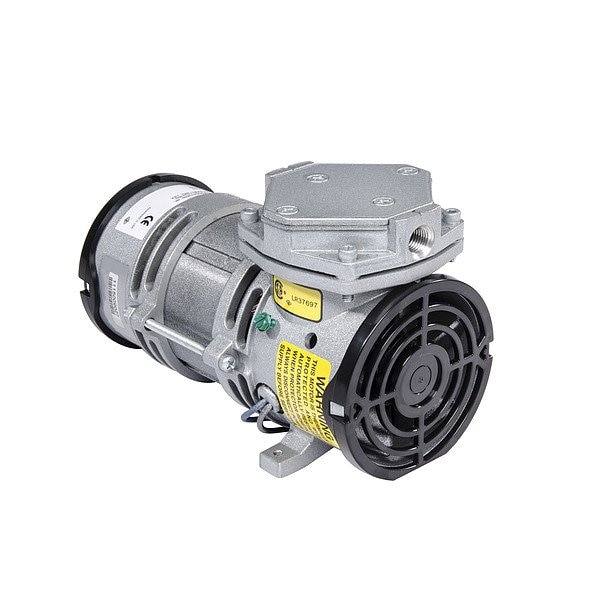

Stock 12/Skid Moa-V112-Ae Diaphragm Pump

product price: $379.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Compressor Type Diaphragm
  • Voltage 110/115V AC
  • Inlet Size 1/4 in
  • Outlet Size 1/4 in
  • Overall Length 7.03 in
See all product information

Product Information

Dimensions

Inlet Size 1/4 in
Outlet Size 1/4 in
Overall Length 7.03 in
Overall Height 4.72 in
Overall Width 4.27 in
Cord Length 12 in

Details

Item Compressor/Vacuum Pump
Compressor Type Diaphragm
Voltage 110/115V AC
Outlet Connection Type NPT
Minimum Operating Temperature 41 Degrees F
Maximum Continuous Pressure 50 psi
Flow Rate @ 0 psi 0.5 cfm
Maximum Operating Temperature 104 Degrees F
Inlet Connection Type NPT
Output Power 1/16 hp
Sound Level 70 dBA
Pump Type Diaphragm
Weight 5.3 lb
Flow Rate @ 0 psi @ 50 Hz 0.4 cfm
Maximum Flow Rate 0.5 cfm
Maximum Intermittent Pressure 50 psi
Maximum Vacuum 24 in Hg
Duty Cycle Continuous
Current Rating 1.8/2.2 A
Frequency 50 Hz, 60 Hz
Electrical Connection Wire Leads
Maximum Speed 1,575 RPM
Standards CE, CSA, cUR
Series MOA
Inlet Gender Female
Enclosure Rating 20
Thermal Protection Built-In
Flow Rate @ 20 psi 0.2 cfm
Phase Single
Housing Material Aluminum
Outlet Gender Female
Power Cord Included No
Flow Rate @ 30 psi 0.15 cfm

Description

Compressor/Vacuum Pump, Output Power 1/16 hp, Voltage 110/115V AC, Maximum Vacuum 24 in Hg, Maximum Continuous Pressure 50 psi, Maximum Intermittent Pressure 50 psi, Maximum Flow Rate 0.5 cfm, Inlet Size 1/4 in, Inlet Connection Type NPT, Inlet Gender Female, Outlet Size 1/4 in, Outlet Connection Type NPT, Outlet Gender Female, Compressor Type Diaphragm, Current Rating 1.8/2.2 A
