Smc

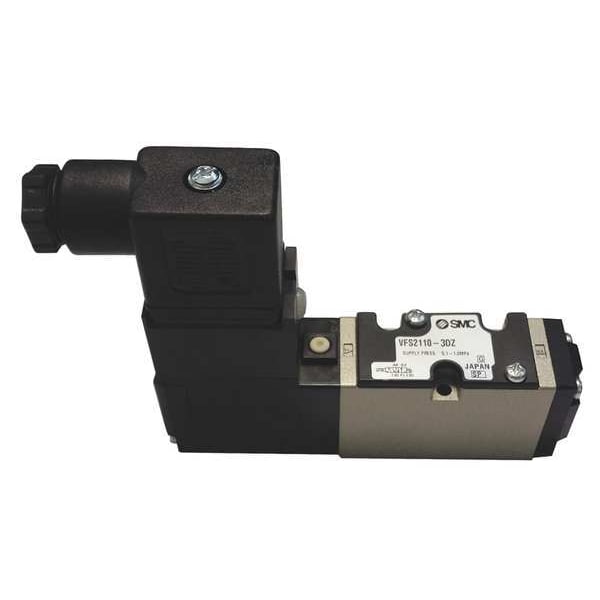

Solenoid Air Control Valve, 0.9, 3.4VA

original price: $77.29
1% off
new price: $76.19
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Valve Ways and Positions 5-Way/2-Position
  • Voltage 110V AC
  • Center Position Open
  • Valve Actuator / Return Solenoid / Spring
  • Coefficient of Volume 0.9
See all product information

Product Information

Dimensions

Overall Width 1 1/64 in
Overall Height 1 37/64 in
Overall Length 7 5/32 in

Details

Item Solenoid Air Control Valve
Valve Ways and Positions 5-Way/2-Position
Voltage 110V AC
Center Position Open
Valve Actuator / Return Solenoid / Spring
Coefficient of Volume 0.9
Max. CFM - Valves 25.2 cfm
Operational Pressure Range 15 to 150 psi
Body Style Base Mounted
Actuator/Return Solenoid/Spring
Normally Open / Normally Closed Normally Open/Normally Closed
Standards CE
Override Non-Locking Push
Pressure Range 15 to 150 psi
Shifting Technology Solenoid/Spring
Power Consumption 3.4 VA
CFM 25.2
Ambient Temp. Range 14 Degrees to 122 Degrees F
Electrical Connections Lead Wire
Air Valve Type 5-Way, 2-Position
Pilot Pressure 15

Description

Solenoid Air Control Valve, Valve Ways and Positions 5-Way/2-Position, Voltage 110V AC, Center Position Open, Valve Actuator / Return Solenoid / Spring, Max. CFM - Valves 25.2 cfm, Operational Pressure Range 15 to 150 psi, Normally Open/Normally Closed, Body Style Base Mounted, Pilot Pressure 15, Coefficient of Volume 0.9, Lead Wire Electrical Connections, Shifting Technology Solenoid/Spring, Power Consumption 3.4 VA, Ambient Temp. Range 14 Degrees to 122 Degrees F, Override Non-Locking Push
