Shop SMC

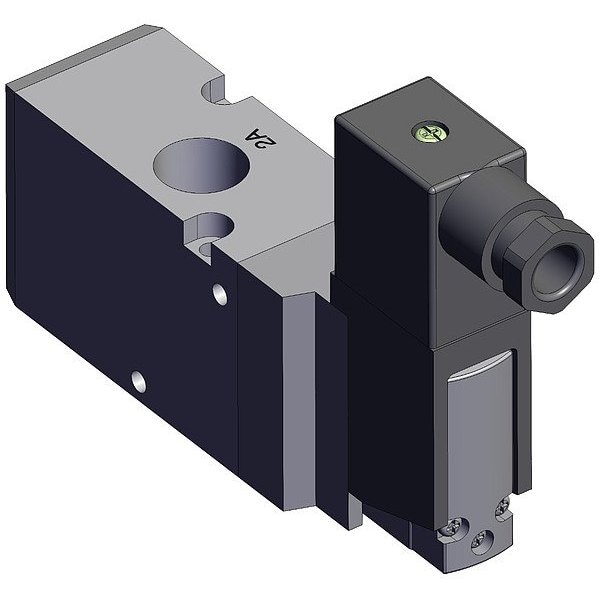

Solenoid Air Control Valve, 140 mm L

  • Mfr # VP542-5D1-03NA

  • Zoro # G921914872

product price:
$
88.89
/ea

Key Features

Overall Width
32 mm
Electrical Connection Type
DIN Solenoid Connector
Exhaust Port Connection Gender
Female
Operating Temperature - Maximum
50 Degrees C
Includes Solenoid Coil
Solenoid Coil Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
VP542-5D1-03NA
Zoro #
G921914872
UPC #
-
Country of Origin
Japan
Electrical Connection Type
DIN Solenoid Connector
Exhaust Port Connection Gender
Female
Operating Temperature - Maximum
50 Degrees C
Includes Solenoid Coil
Solenoid Coil Included
Actuator Type
Single Solenoid
Pilot Pressure
0.2 MPa
Number of Ways
Three-Way
Series
VP500
Number of Positions
Two-Position
Exhaust Port Connection Type
NPT
Item
Solenoid Air Control Valve
Body Features
Single
Coefficient of Volume (Cv)
2.2
Response Time
14 msec
Override
Non-Locking
Pilot Port Connection Gender
Female
Body Style
Body-Ported
Return Action
Spring Return
Operating Pressure - Maximum
0.7 MPa
Inlet Port Connection Gender
Female
Number of Ports
3
Product Type
Solenoid Air Control Valve
Valve Type
Spool
Valve Action
Normally Closed
Body Material
Aluminum
Inlet Port Connection Type
NPT
Operating Pressure - Minimum
0.2 MPa
Operating Temperature - Minimum
-10 Degrees C
Voltage
24V DC
Seal Material
Rubber
Pilot Type
Internal Pilot
Power Consumption
0.55 W

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.2 MPa, Power Consumption 0.55 W, Override Non-Locking, Overall Height 85 mm, Overall Length 140 mm, Overall Width 32 mm
