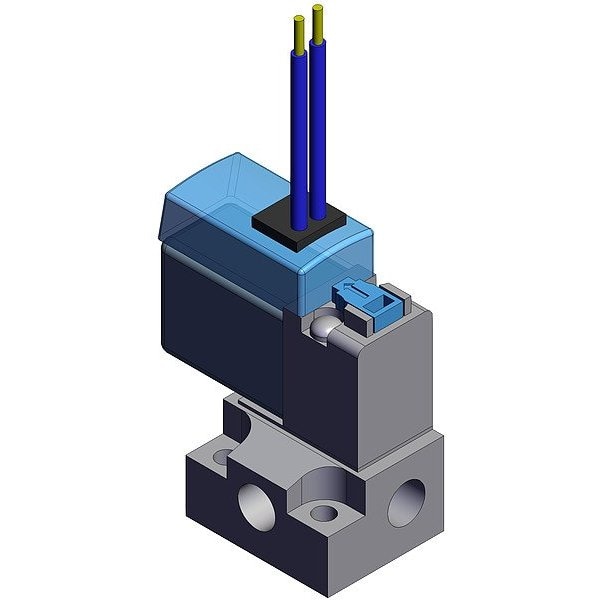

Solenoid Air Control Valve, 28 1/2 mm L
Mfr # V114-SH-M5
Zoro # G221914756
product price:Â
$
37.79
/ea
Key Features
Actuator Type
Single Solenoid
Operating Pressure - Minimum
0 MPa
Exhaust Port Connection Size
M5 X 0.8
Operating Pressure - Maximum
0.7 MPa
Return Action
Spring Return
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- V114-SH-M5
- Zoro #
- G221914756
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Exhaust Port Connection Size
- M5 X 0.8
- Inlet Port Connection Size
- M5 X 0.8
- Wire Rope Length
- 28 1/2 mm
- Pilot Port Connection Size
- M5 X 0.8
- Overall Height
- 31 13/16 mm
- Overall Width
- 15 1/2 mm
- Overall Length
- 28 1/2 mm
- Length
- 28 1/2 mm
Description
Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0 MPa, Power Consumption 0.35 W, Override Non-Locking, Overall Height 31 13/16 mm, Overall Length 28 1/2 mm, Overall Width 15 1/2 mm
