No Product Image Available

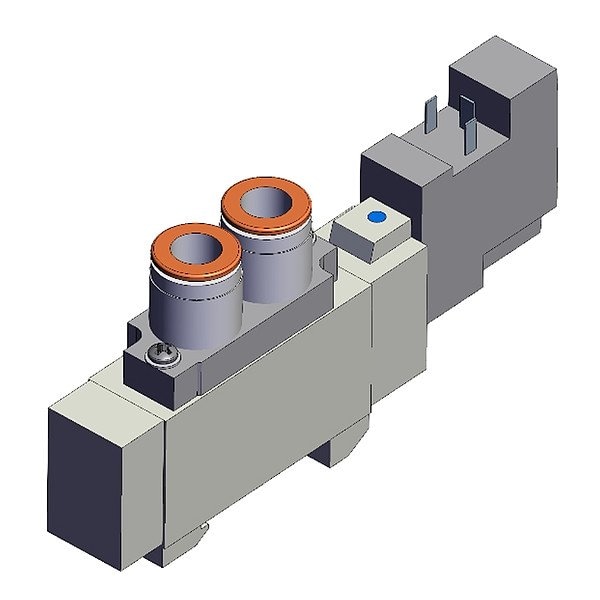

Solenoid Valve

  • Mfr # SY7160-5DO-N11

  • Zoro # G115197760

product price:  $74.29
/ea

Key Features

Body Style
Body-Ported
Series
SY7000
Voltage
24V DC
Pilot Pressure
35 psi
Power Consumption
0.35 W
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SY7160-5DO-N11
Zoro #
G115197760
UPC #
-
Country of Origin
Japan

Dimensions

Inlet Port Connection Size
3/8 in
Exhaust Port Connection Size
3/8 in
Pilot Port Connection Size
3/8 in

Details

Item
Solenoid Valve
Body Style
Body-Ported
Series
SY7000
Voltage
24V DC
Pilot Pressure
35 psi
Power Consumption
0.35 W
Override
Non-Locking
Number of Ways
Five-Way
Standards
RoHS Compliant
Number of Positions
Two-Position
Actuator Type
Single Solenoid
Valve Type
Spool
For Media
Air
Pilot Type
Internal Pilot
Lubrication
Lubrication Not Required
Number of Ports
5
Operating Pressure - Minimum
0.1 MPa
Operating Pressure - Maximum
0.7 MPa
Product Type
Solenoid Air Control Valve
Operating Temperature - Maximum
50 Degrees C
Seal Material
Rubber
Spool Material
Aluminum
Electrical Connection Type
DIN Solenoid Connector
Return Action
Single Solenoid Monostable
Coefficient of Volume (Cv)
1.1
Body Features
Single
Inlet Port Connection Type
BSPT
Includes Solenoid Coil
Solenoid Coil Included
Exhaust Port Connection Type
BSPT
Flow Rate - Maximum
37.72 scfm

Description

Solenoid Valve

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
