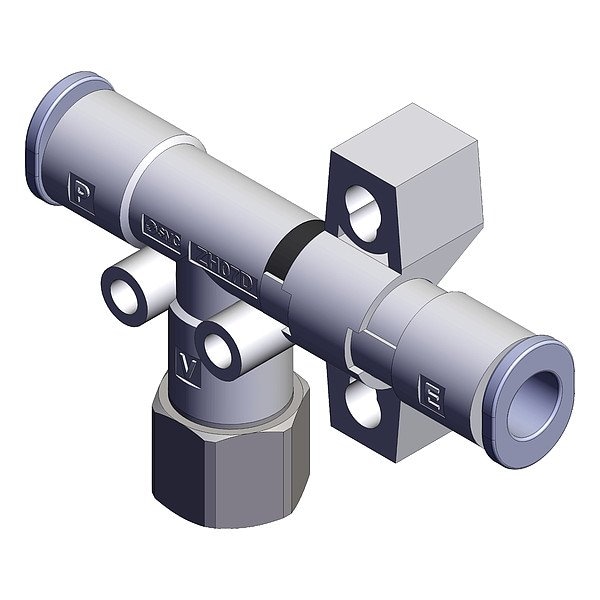

Vacuum Ejector, Body Ported
Mfr # ZH07DSA-06-01-06
Zoro # G921916173
product price:Â
$
20.85
/ea
Key Features
Minimum Vacuum Pressure
0.1 MPa
Maximum Operating Temperature
50 Degrees C
Vacuum Port Size
1/8 in
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Vacuum Port Type
RC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZH07DSA-06-01-06
- Zoro #
- G921916173
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Vacuum Port Size
- 1/8 in
- Pressure Port Size
- 6 mm
- Nozzle Diameter
- .7
- Exhaust Port Size
- 6 mm
- Overall Height
- 40 mm
- Overall Width
- 14 mm
- Overall Depth
- 55 mm
Description
Item Vacuum Ejector, Air Consumption 27 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size 6 mm, Exhaust Port Type Push-to-Connect, Includes Not Applicable, Maximum Flow Rate 28 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure 0.6 MPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.45 MPa, Minimum Vacuum Pressure 0.1 MPa, Nozzle Diameter .7, Number of Stages 1
