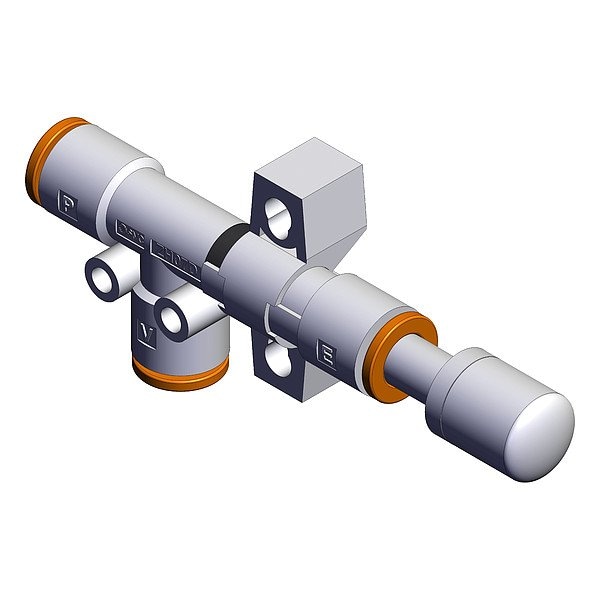

Vacuum Ejector, Body Ported

  • Mfr # ZH07DSA-07-07-07S

  • Zoro # G621915261

product price:  $23.55
/ea

Key Features

Maximum Vacuum Pressure
0.6 MPa
Pressure Port Type
Push-to-Connect
Overall Width
14 mm
Vacuum Port Type
Push-to-Connect
Maximum Supply Pressure
0.6 MPa
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZH07DSA-07-07-07S
Zoro #
G621915261
UPC #
-
Country of Origin
Japan

Dimensions

Overall Width
14 mm
Wire Rope Length
55 mm
Vacuum Port Size
1/4 in
Overall Depth
78.2 mm
Pressure Port Size
1/4 in
Exhaust Port Size
1/4 in
Overall Height
32.4 mm
Nozzle Diameter
.5

Details

Maximum Vacuum Pressure
0.6 MPa
Pressure Port Type
Push-to-Connect
Vacuum Port Type
Push-to-Connect
Maximum Supply Pressure
0.6 MPa
Minimum Supply Pressure
0.45 MPa
Maximum Operating Temperature
50 Degrees C
Item
Vacuum Ejector
Air Consumption
27 lpm
Number of Stages
1
Minimum Operating Temperature
-5 Degrees C
Weight
0.03 lb
Minimum Vacuum Pressure
0.1 MPa
Series
ZH
Maximum Flow Rate
28 lpm
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Exhaust Port Type
Push-to-Connect

Description

Item Vacuum Ejector, Air Consumption 27 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size 1/4 in, Exhaust Port Type Push-to-Connect, Includes Not Applicable, Maximum Flow Rate 28 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure 0.6 MPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.45 MPa, Minimum Vacuum Pressure 0.1 MPa, Nozzle Diameter .5, Number of Stages 1
