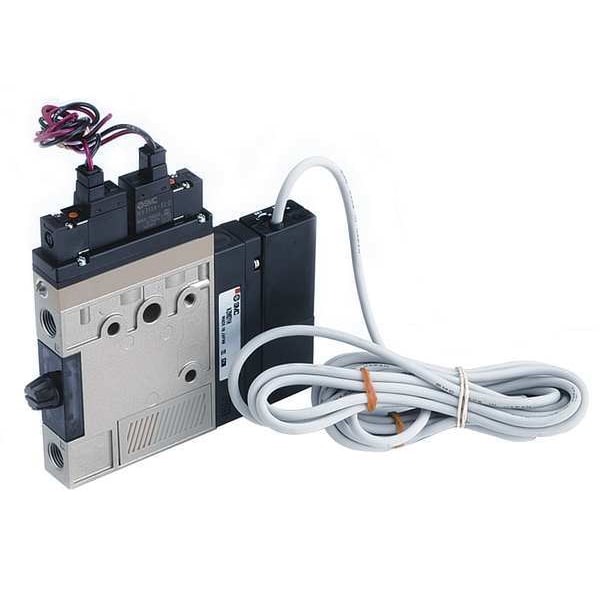

Vacuum Ejector, Single, 1/8 In NPT
Mfr # ZM101HT-K5L-E15L
Zoro # G4870241
product price:Â
$
367.99
/ea
Free Shipping & Returns
Key Features
Pressure Port Size
1/8 in
Vacuum Port Size
1/8 in
Exhaust Type
Muffler
Vacuum Flow Rate
36.0 lpm
Ejector Type
2 Stage Venturi
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- ZM101HT-K5L-E15L
- Zoro #
- G4870241
- UPC #
- -
- Country of Origin
- Japan
- Exhaust Type
- Muffler
- Vacuum Flow Rate
- 36.0 lpm
- Ejector Type
- 2 Stage Venturi
- Vacuum Pressure @ 40 PSI
- -50 kPa
- Valve Type
- 2 NC Supply and Release
- Supply Pressure Range
- 35 to 72 PSI
- Weight
- 340 g
- Switch Type
- 1 NPN Output
- Item
- Vacuum Ejector
- Valve Supply Voltage
- 24 V DC
- Vacuum Pressure Range
- 0 to -84 KPA
- Temp. Range
- 5 Degrees to 60 Degrees C
- Vacuum Pressure @ 75 PSI
- -84 kPa
- Includes
- Muffler, Needle Flow Control Valve, Release Valve, Supply Valve, Vacuum Switch
- Vacuum Port Type
- NPT
- Maximum Supply Pressure
- 72 psi
- Maximum Operating Temperature
- 60 Degrees C
- Pressure Port Type
- NPT
- Maximum Flow Rate
- 36 lpm
Description
Item Vacuum Ejector, Includes Muffler, Needle Flow Control Valve, Release Valve, Supply Valve, Vacuum Switch, Maximum Flow Rate 36 lpm, Maximum Operating Temperature 60 Degrees C, Maximum Supply Pressure 72 psi, Overall Length 111 mm, Overall Width 15.5 mm, Pressure Port Size 1/8 in, Pressure Port Type NPT, Switch Type 1 NPN Output, Vacuum Port Size 1/8 in, Vacuum Port Type NPT, Vacuum Pressure @ 40 PSI -50 kPa, Vacuum Pressure @ 75 PSI -84 kPa, Valve Supply Voltage 24 V DC
