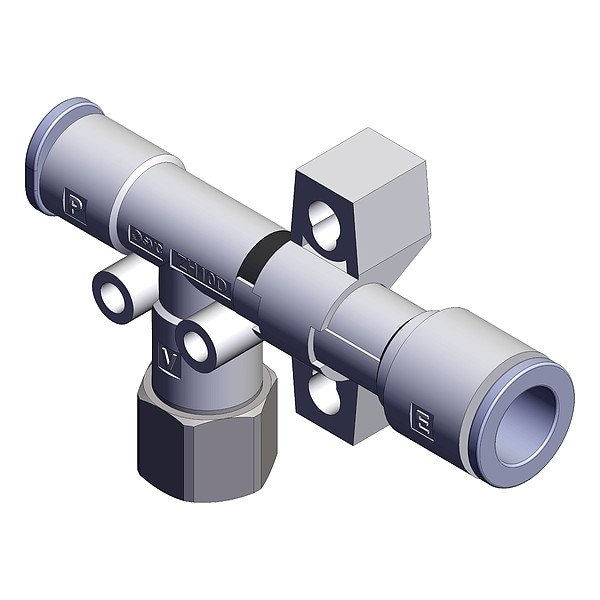

Vacuum Ejector, Body Ported
Mfr # ZH10DSA-06-01-08
Zoro # G521914845
product price:Â
$
24.19
/ea
Key Features
Overall Height
40 mm
Series
ZH
Nozzle Diameter
1.0
Pressure Port Size
6 mm
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZH10DSA-06-01-08
- Zoro #
- G521914845
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Height
- 40 mm
- Nozzle Diameter
- 1.0
- Pressure Port Size
- 6 mm
- Exhaust Port Size
- 8 mm
- Vacuum Port Size
- 1/8 in
- Overall Depth
- 61.7 mm
- Overall Width
- 14 mm
Description
Item Vacuum Ejector, Air Consumption 52 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size 8 mm, Exhaust Port Type Push-to-Connect, Includes Not Applicable, Maximum Flow Rate 52 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure 0.6 MPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.45 MPa, Minimum Vacuum Pressure 0.1 MPa, Nozzle Diameter 1.0, Number of Stages 1
