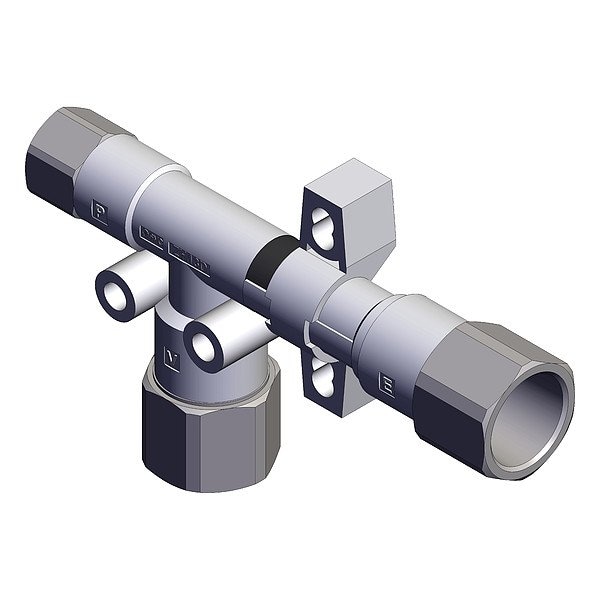

Vacuum Ejector, Body Ported
Mfr # ZH13DSA-N01-N02-N02
Zoro # G821914729
product price:Â
$
27.59
/ea
Key Features
Weight
12.4 g
Overall Height
53.8 mm
Maximum Operating Temperature
50 Degrees C
Pressure Port Size
1/8 in
Minimum Operating Temperature
-5 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZH13DSA-N01-N02-N02
- Zoro #
- G821914729
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Height
- 53.8 mm
- Pressure Port Size
- 1/8 in
- Overall Width
- 20 mm
- Exhaust Port Size
- 1/4 in
- Overall Depth
- 90.8 mm
- Vacuum Port Size
- 1/4 in
- Nozzle Diameter
- 1.3
Details
- Weight
- 12.4 g
- Maximum Operating Temperature
- 50 Degrees C
- Minimum Operating Temperature
- -5 Degrees C
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Vacuum Port Type
- NPT
- Number of Stages
- 1
- Item
- Vacuum Ejector
- Exhaust Port Type
- NPT
- Minimum Supply Pressure
- 0.45 MPa
- Maximum Vacuum Pressure
- 0.6 MPa
- Series
- ZH
- Air Consumption
- 88 lpm
- Pressure Port Type
- NPT
- Maximum Flow Rate
- 40 lpm
- Maximum Supply Pressure
- 0.6 MPa
- Minimum Vacuum Pressure
- 0.1 MPa
Description
Item Vacuum Ejector, Air Consumption 88 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size 1/4 in, Exhaust Port Type NPT, Includes Not Applicable, Maximum Flow Rate 40 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure 0.6 MPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.45 MPa, Minimum Vacuum Pressure 0.1 MPa, Nozzle Diameter 1.3, Number of Stages 1
