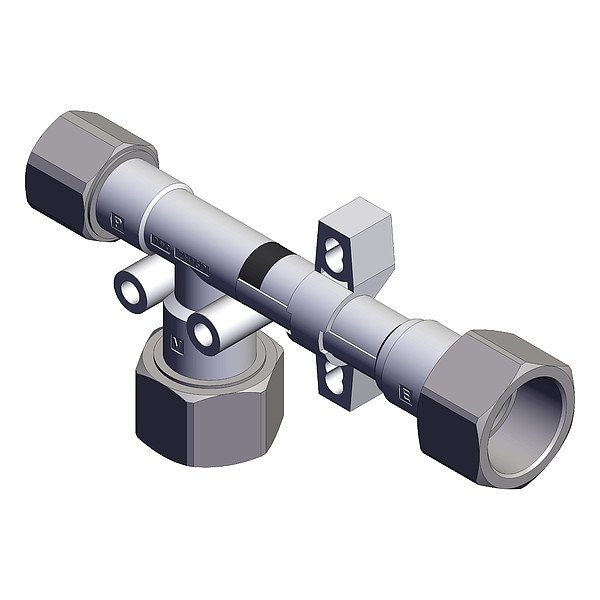

Vacuum Ejector, Body Ported

  • Mfr # ZH15DSA-N02-N03-N03

  • Zoro # G821916358

product price:
$
41.15
/ea

Key Features

Minimum Supply Pressure
0.45 MPa
Maximum Supply Pressure
0.6 MPa
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Overall Width
20 mm
Pressure Port Gender
Female
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZH15DSA-N02-N03-N03
Zoro #
G821916358
UPC #
-
Country of Origin
Japan

Dimensions

Overall Width
20 mm
Pressure Port Size
1/4 in
Overall Depth
108.2 mm
Vacuum Port Size
1/4 in
Nozzle Diameter
1.5
Overall Height
54.6 mm
Exhaust Port Size
3/8 in

Details

Minimum Supply Pressure
0.45 MPa
Maximum Supply Pressure
0.6 MPa
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Pressure Port Gender
Female
Series
ZH
Air Consumption
117 lpm
Number of Stages
1
Maximum Operating Temperature
50 Degrees C
Weight
13.4 g
Maximum Vacuum Pressure
0.6 MPa
Vacuum Port Gender
Female
Minimum Operating Temperature
-5 Degrees C
Item
Vacuum Ejector
Pressure Port Type
NPT
Vacuum Port Type
NPT
Maximum Flow Rate
58 lpm
Exhaust Port Type
NPT
Minimum Vacuum Pressure
0.1 MPa

Description

Item Vacuum Ejector, Air Consumption 117 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size 3/8 in, Exhaust Port Type NPT, Includes Not Applicable, Maximum Flow Rate 58 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure 0.6 MPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.45 MPa, Minimum Vacuum Pressure 0.1 MPa, Nozzle Diameter 1.5, Number of Stages 1
