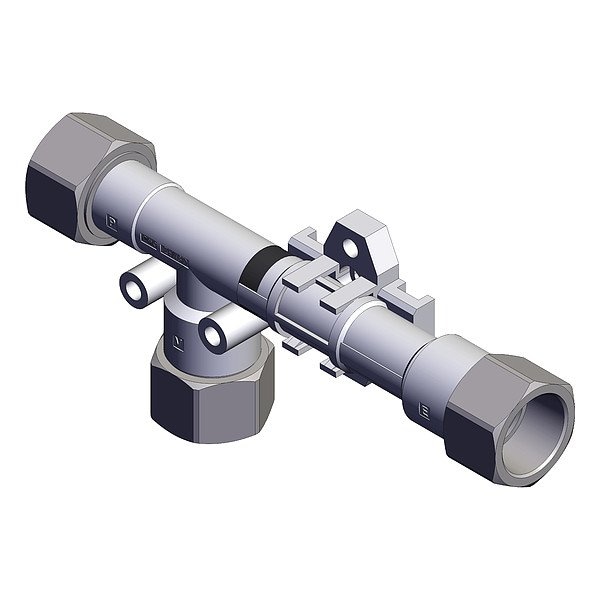

Vacuum Ejector, Body Ported
Mfr # ZH18DLA-N03-N03-N03
Zoro # G321916292
product price:Â
$
55.99
/ea
Key Features
Pressure Port Type
NPT
Nozzle Diameter
1.8
Overall Width
22 mm
Series
ZH
Vacuum Port Size
3/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZH18DLA-N03-N03-N03
- Zoro #
- G321916292
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Nozzle Diameter
- 1.8
- Overall Width
- 22 mm
- Vacuum Port Size
- 3/8 in
- Pressure Port Size
- 3/8 in
- Overall Height
- 57 mm
- Overall Depth
- 131 mm
- Exhaust Port Size
- 3/8 in
Details
- Pressure Port Type
- NPT
- Item
- Vacuum Ejector
- Series
- ZH
- Maximum Supply Pressure
- 0.6 MPa
- Minimum Vacuum Pressure
- 0.1 MPa
- Air Consumption
- 165 lpm
- Maximum Operating Temperature
- 50 Degrees C
- Minimum Operating Temperature
- -5 Degrees C
- Minimum Supply Pressure
- 0.45 MPa
- Vacuum Port Type
- NPT
- Maximum Vacuum Pressure
- 0.6 MPa
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Maximum Flow Rate
- 76 lpm
- Number of Stages
- 1
- Exhaust Port Type
- NPT
- Weight
- 22.2 lb
Description
Item Vacuum Ejector, Air Consumption 165 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size 3/8 in, Exhaust Port Type NPT, Includes Not Applicable, Maximum Flow Rate 76 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure 0.6 MPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.45 MPa, Minimum Vacuum Pressure 0.1 MPa, Nozzle Diameter 1.8, Number of Stages 1
