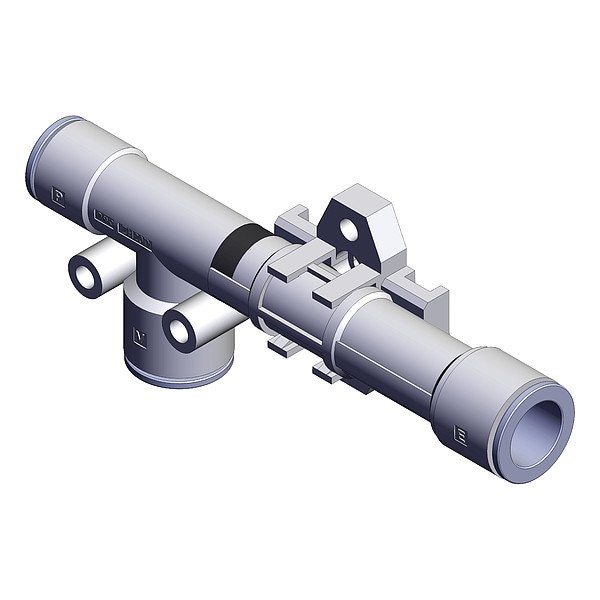

Vacuum Ejector, Body Ported
Mfr # ZH20DSA-10-12-12
Zoro # G821915917
product price:Â
$
55.99
/ea
Key Features
Minimum Operating Temperature
-5 Degrees C
Minimum Supply Pressure
0.45 MPa
Vacuum Port Type
Push-to-Connect
Exhaust Port Size
12 mm
Pressure Port Size
10 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZH20DSA-10-12-12
- Zoro #
- G821915917
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Exhaust Port Size
- 12 mm
- Pressure Port Size
- 10 mm
- Overall Width
- 22 mm
- Vacuum Port Size
- 12 mm
- Overall Depth
- 112.2 mm
- Nozzle Diameter
- 2.0
- Overall Height
- 44.4 mm
Details
- Minimum Operating Temperature
- -5 Degrees C
- Minimum Supply Pressure
- 0.45 MPa
- Vacuum Port Type
- Push-to-Connect
- Number of Stages
- 1
- Item
- Vacuum Ejector
- Maximum Vacuum Pressure
- 0.6 MPa
- Exhaust Port Type
- Push-to-Connect
- Maximum Operating Temperature
- 50 Degrees C
- Series
- ZH
- Pressure Port Type
- Push-to-Connect
- Maximum Flow Rate
- 90 lpm
- Weight
- 23.3 g
- Minimum Vacuum Pressure
- 0.1 MPa
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Maximum Supply Pressure
- 0.6 MPa
- Air Consumption
- 201 lpm
Description
Item Vacuum Ejector, Air Consumption 201 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size 12 mm, Exhaust Port Type Push-to-Connect, Includes Not Applicable, Maximum Flow Rate 90 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure 0.6 MPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.45 MPa, Minimum Vacuum Pressure 0.1 MPa, Nozzle Diameter 2.0, Number of Stages 1
