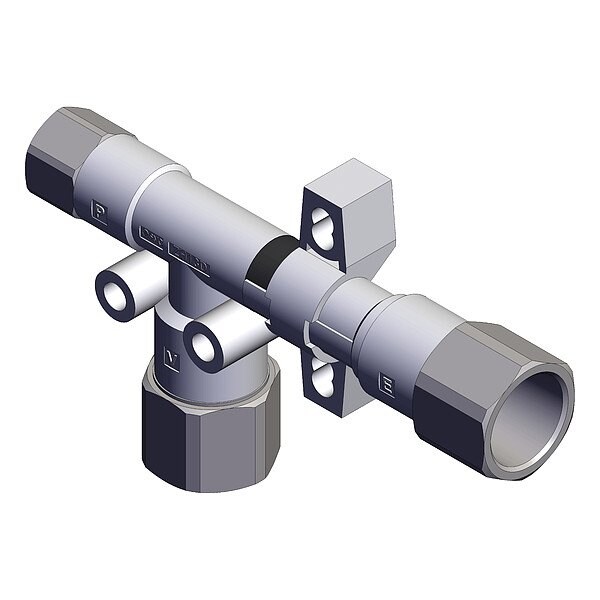

Vacuum Ejector, Body Ported
Mfr # ZH13DLA-N01-N02-N02
Zoro # G921914827
product price:Â
$
27.59
/ea
Key Features
Overall Width
20 mm
Series
ZH
Maximum Operating Temperature
50 Degrees C
Overall Depth
90.8 mm
Pressure Port Size
1/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZH13DLA-N01-N02-N02
- Zoro #
- G921914827
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Width
- 20 mm
- Overall Depth
- 90.8 mm
- Pressure Port Size
- 1/8 in
- Exhaust Port Size
- 1/4 in
- Nozzle Diameter
- 1.3
- Vacuum Port Size
- 1/4 in
- Overall Height
- 53.8 mm
Details
- Series
- ZH
- Maximum Operating Temperature
- 50 Degrees C
- Maximum Vacuum Pressure
- 0.6 MPa
- Weight
- 12.4 g
- Item
- Vacuum Ejector
- Minimum Supply Pressure
- 0.45 MPa
- Minimum Operating Temperature
- -5 Degrees C
- Air Consumption
- 88 lpm
- Maximum Flow Rate
- 40 lpm
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Pressure Port Type
- NPT
- Maximum Supply Pressure
- 0.6 MPa
- Exhaust Port Type
- NPT
- Minimum Vacuum Pressure
- 0.1 MPa
- Vacuum Port Type
- NPT
- Number of Stages
- 1
Description
Item Vacuum Ejector, Air Consumption 88 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size 1/4 in, Exhaust Port Type NPT, Includes Not Applicable, Maximum Flow Rate 40 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure 0.6 MPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.45 MPa, Minimum Vacuum Pressure 0.1 MPa, Nozzle Diameter 1.3, Number of Stages 1
