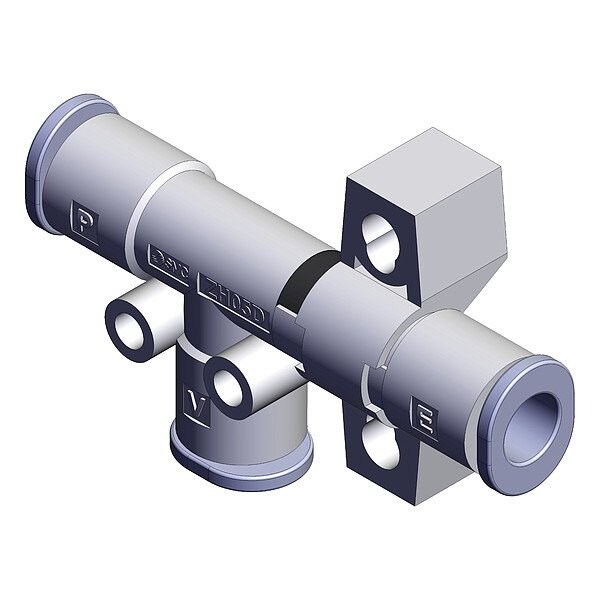

VACUUM GENERATOR
Mfr # ZH05DLA-06-06-06
Zoro # G321915332
product price:Â $17.45
/eaKey Features
Minimum Operating Temperature
-5 Degrees C
Overall Width
14 mm
Weight
5 g
Exhaust Port Size
6 mm
Overall Depth
51.8 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZH05DLA-06-06-06
- Zoro #
- G321915332
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Width
- 14 mm
- Exhaust Port Size
- 6 mm
- Overall Depth
- 51.8 mm
- Overall Height
- 32.4 mm
- Vacuum Port Size
- 6 mm
- Nozzle Diameter
- .5
- Pressure Port Size
- 6 mm
- Wire Rope Length
- 51.8 mm
Details
- Item
- Vacuum Generator
- Minimum Operating Temperature
- -5 Degrees C
- Weight
- 5 g
- Number of Stages
- 1
- Series
- ZH
- Maximum Flow Rate
- 13 lpm
- Pressure Port Type
- Push-to-Connect
- Minimum Supply Pressure
- 0.45 MPa
- Exhaust Port Type
- Push-to-Connect
- Vacuum Port Type
- Push-to-Connect
- Minimum Vacuum Pressure
- 0.1 MPa
- Maximum Vacuum Pressure
- 0.6 MPa
- Maximum Supply Pressure
- 0.6 MPa
- Maximum Operating Temperature
- 50 Degrees C
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Air Consumption
- 13 lpm
Description
Item Vacuum Generator, Air Consumption 13 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size 6 mm, Exhaust Port Type Push-to-Connect, Includes Not Applicable, Maximum Flow Rate 13 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure 0.6 MPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.45 MPa, Minimum Vacuum Pressure 0.1 MPa, Nozzle Diameter .5, Number of Stages 1
