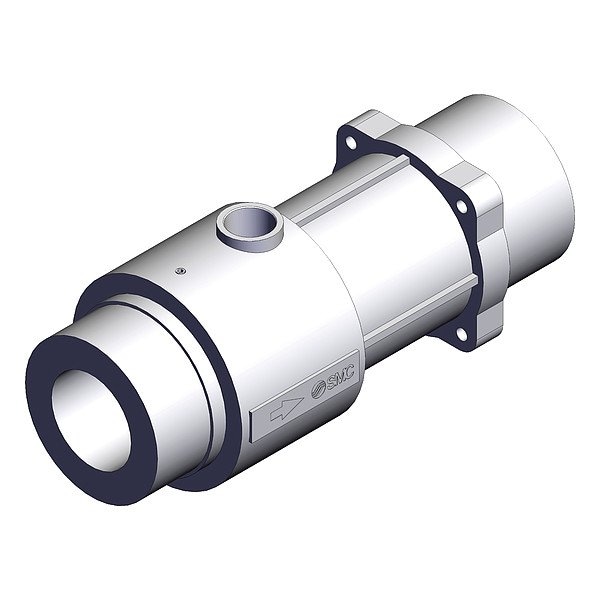

VACUUM FLOW
Mfr # ZHV30
Zoro # G121916065
product price:Â
$
143.99
/ea
Free Shipping & Returns
Key Features
Overall Height
70 mm
Maximum Operating Temperature
80 Degrees C
Vacuum Port Size
1/4 in
Maximum Supply Pressure
0.5 MPa
Minimum Operating Temperature
-5 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZHV30
- Zoro #
- G121916065
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Height
- 70 mm
- Vacuum Port Size
- 1/4 in
- Pressure Port Size
- 30 mm
- Overall Depth
- 157.3 mm
- Overall Width
- 70 mm
- Nozzle Diameter
- 30mm
Details
- Maximum Operating Temperature
- 80 Degrees C
- Maximum Supply Pressure
- 0.5 MPa
- Minimum Operating Temperature
- -5 Degrees C
- Pressure Port Type
- RC
- Series
- ZHV
- Minimum Supply Pressure
- 0.45 MPa
- Item
- Vacuum Ejector
- Weight
- 526 lb
- Vacuum Port Type
- RC
- Maximum Flow Rate
- 4,590 lpm
- Minimum Vacuum Pressure
- 0 MPa
- Maximum Vacuum Pressure
- 0.7 MPa
- Exhaust Port Type
- Push-to-Connect
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Air Consumption
- 710 lpm
- Number of Stages
- 1
Description
Item Vacuum Ejector, Air Consumption 710 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size Not Applicable, Exhaust Port Type Push-to-Connect, Includes Not Applicable, Maximum Flow Rate 4,590 lpm, Maximum Operating Temperature 80 Degrees C, Maximum Supply Pressure 0.5 MPa, Maximum Vacuum Pressure 0.7 MPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.45 MPa, Minimum Vacuum Pressure 0 MPa, Nozzle Diameter 30mm
