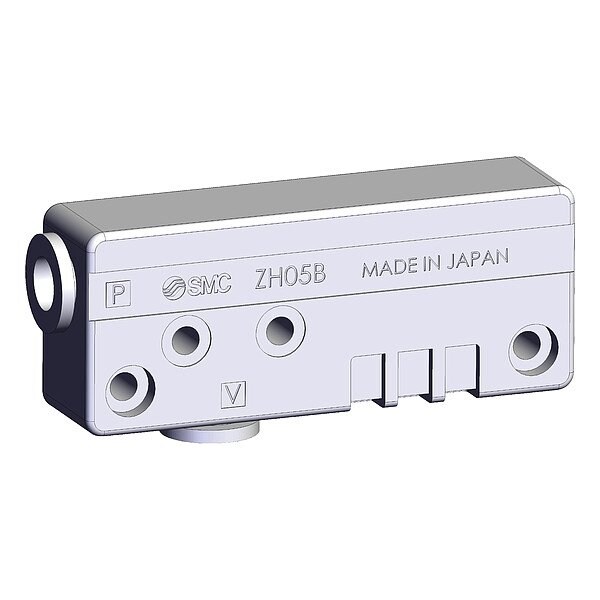

VACUUM GENERATOR
Mfr # ZH05BLA-06-06
Zoro # G321916025
product price:Â $29.95
/eaKey Features
Minimum Vacuum Pressure
0.1 MPa
Wire Rope Length
59.4 mm
Pressure Port Type
Push-to-Connect
Overall Height
25.4 mm
Series
ZH
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZH05BLA-06-06
- Zoro #
- G321916025
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Wire Rope Length
- 59.4 mm
- Overall Height
- 25.4 mm
- Nozzle Diameter
- .5
- Vacuum Port Size
- 6 mm
- Pressure Port Size
- 6 mm
- Overall Width
- 14 mm
- Overall Depth
- 59.4 mm
Details
- Minimum Vacuum Pressure
- 0.1 MPa
- Pressure Port Type
- Push-to-Connect
- Series
- ZH
- Minimum Operating Temperature
- -5 Degrees C
- Maximum Supply Pressure
- 0.6 MPa
- Air Consumption
- 27 lpm
- Maximum Flow Rate
- 13 lpm
- Weight
- 12.3 g
- Item
- Vacuum Generator
- Maximum Vacuum Pressure
- 0.6 MPa
- Minimum Supply Pressure
- 0.45 MPa
- Number of Stages
- 1
- Vacuum Port Type
- Push-to-Connect
- Maximum Operating Temperature
- 50 Degrees C
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Description
Item Vacuum Generator, Air Consumption 27 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size Not Applicable, Exhaust Port Type Not Applicable, Includes Not Applicable, Maximum Flow Rate 13 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure 0.6 MPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.45 MPa, Minimum Vacuum Pressure 0.1 MPa, Nozzle Diameter .5, Number of Stages 1
