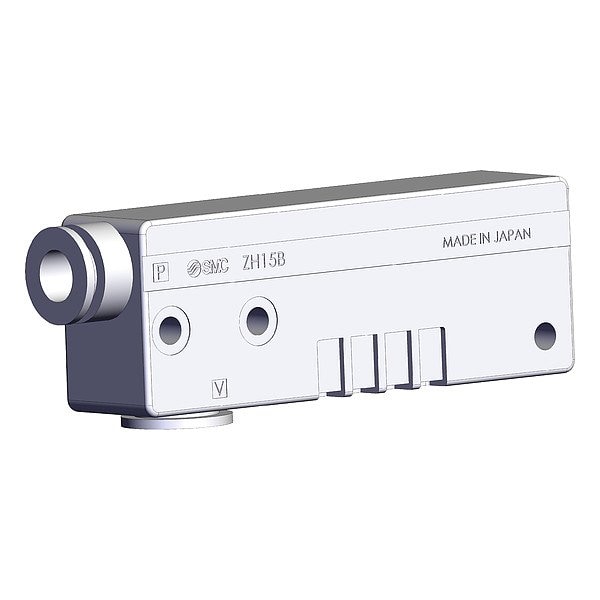

VACUUM GENERATOR
Mfr # ZH15BSA-08-10
Zoro # G821915788
product price:Â
$
35.79
/ea
Key Features
Weight
28.7 lb
Overall Depth
92.4 mm
Maximum Supply Pressure
0.6 MPa
Overall Width
20 mm
Maximum Flow Rate
58 lpm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- ZH15BSA-08-10
- Zoro #
- G821915788
- UPC #
- -
- Country of Origin
- Japan
- Weight
- 28.7 lb
- Maximum Supply Pressure
- 0.6 MPa
- Maximum Flow Rate
- 58 lpm
- Minimum Operating Temperature
- -5 Degrees C
- Series
- ZH
- Minimum Vacuum Pressure
- 0.1 MPa
- Air Consumption
- 117 lpm
- Pressure Port Type
- Push-to-Connect
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Item
- Vacuum Generator
- Maximum Operating Temperature
- 50 Degrees C
- Maximum Vacuum Pressure
- 0.6 MPa
- Number of Stages
- 1
- Minimum Supply Pressure
- 0.45 MPa
- Vacuum Port Type
- Push-to-Connect
Description
Item Vacuum Generator, Air Consumption 117 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size Not Applicable, Exhaust Port Type Not Applicable, Includes Not Applicable, Maximum Flow Rate 58 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure 0.6 MPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.45 MPa, Minimum Vacuum Pressure 0.1 MPa, Nozzle Diameter 1.5
