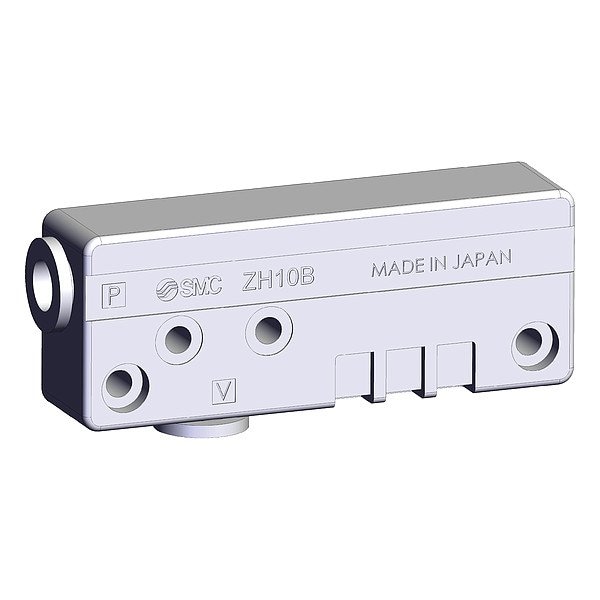

VACUUM GENERATOR
Mfr # ZH10BLA-06-06
Zoro # G221915906
product price:Â
$
31.39
/ea
Key Features
Vacuum Port Size
6 mm
Overall Width
14 mm
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Overall Height
25.4 mm
Maximum Supply Pressure
0.6 MPa
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- ZH10BLA-06-06
- Zoro #
- G221915906
- UPC #
- -
- Country of Origin
- Japan
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Maximum Supply Pressure
- 0.6 MPa
- Weight
- 13.6 lb
- Series
- ZH
- Pressure Port Type
- Push-to-Connect
- Number of Stages
- 1
- Minimum Operating Temperature
- -5 Degrees C
- Maximum Vacuum Pressure
- 0.6 MPa
- Air Consumption
- 52 lpm
- Item
- Vacuum Generator
- Maximum Flow Rate
- 52 lpm
- Vacuum Port Type
- Push-to-Connect
- Minimum Vacuum Pressure
- 0.1 MPa
- Maximum Operating Temperature
- 50 Degrees C
- Minimum Supply Pressure
- 0.45 MPa
Description
Item Vacuum Generator, Air Consumption 52 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size Not Applicable, Exhaust Port Type Not Applicable, Includes Not Applicable, Maximum Flow Rate 52 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure 0.6 MPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.45 MPa, Minimum Vacuum Pressure 0.1 MPa, Nozzle Diameter 1.0, Number of Stages 1
