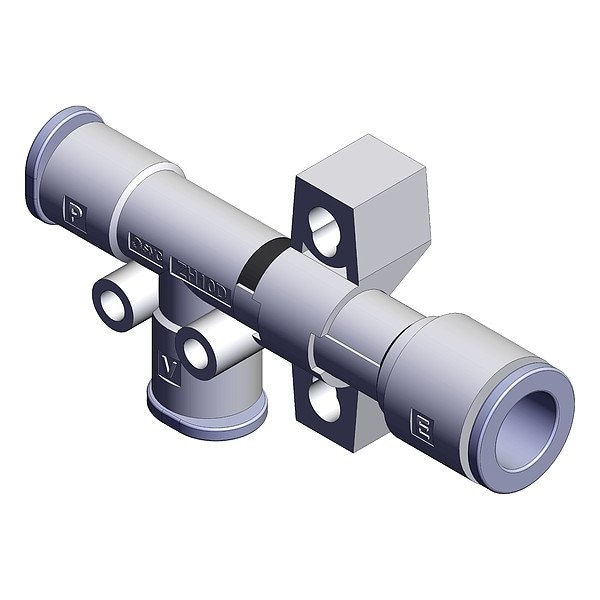

VACUUM GENERATOR
Mfr # ZH10DSA-06-06-08
Zoro # G821916082
product price:Â
$
21.29
/ea
Key Features
Exhaust Port Size
8 mm
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Pressure Port Type
Push-to-Connect
Overall Width
14 mm
Maximum Flow Rate
52 lpm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZH10DSA-06-06-08
- Zoro #
- G821916082
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Exhaust Port Size
- 8 mm
- Overall Width
- 14 mm
- Overall Depth
- 61.7 mm
- Overall Height
- 32.4 mm
- Vacuum Port Size
- 6 mm
- Pressure Port Size
- 6 mm
- Nozzle Diameter
- 1.0
Details
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Pressure Port Type
- Push-to-Connect
- Maximum Flow Rate
- 52 lpm
- Air Consumption
- 52 lpm
- Exhaust Port Type
- Push-to-Connect
- Maximum Supply Pressure
- 0.6 MPa
- Number of Stages
- 1
- Minimum Vacuum Pressure
- 0.1 MPa
- Item
- Vacuum Generator
- Vacuum Port Type
- Push-to-Connect
- Series
- ZH
- Maximum Operating Temperature
- 50 Degrees C
- Minimum Supply Pressure
- 0.45 MPa
- Maximum Vacuum Pressure
- 0.6 MPa
- Minimum Operating Temperature
- -5 Degrees C
- Weight
- 0.03 lb
Description
Item Vacuum Generator, Air Consumption 52 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size 8 mm, Exhaust Port Type Push-to-Connect, Includes Not Applicable, Maximum Flow Rate 52 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure 0.6 MPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.45 MPa, Minimum Vacuum Pressure 0.1 MPa, Nozzle Diameter 1.0, Number of Stages 1
