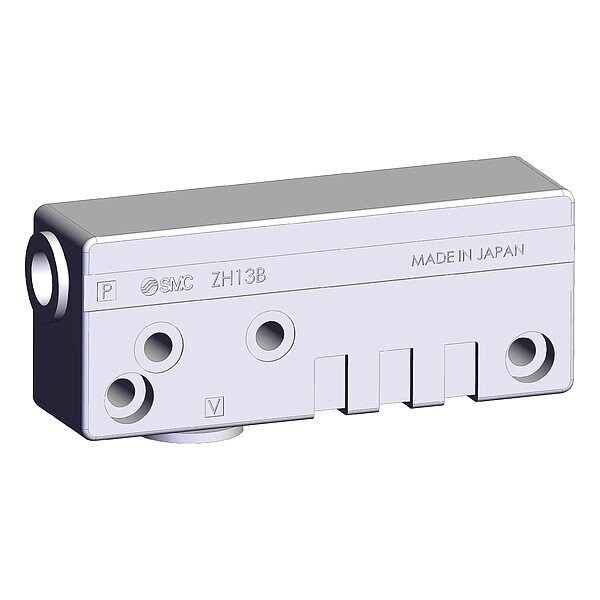

VACUUM GENERATOR
Mfr # ZH13BSA-08-10
Zoro # G121916072
product price:Â
$
34.29
/ea
Key Features
Maximum Supply Pressure
0.6 MPa
Series
ZH
Overall Width
20 mm
Nozzle Diameter
1.3
Vacuum Port Type
Push-to-Connect
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZH13BSA-08-10
- Zoro #
- G121916072
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Width
- 20 mm
- Nozzle Diameter
- 1.3
- Vacuum Port Size
- 10 mm
- Pressure Port Size
- 8 mm
- Overall Height
- 32.4 mm
- Overall Depth
- 77.4 mm
Details
- Maximum Supply Pressure
- 0.6 MPa
- Series
- ZH
- Vacuum Port Type
- Push-to-Connect
- Maximum Flow Rate
- 40 lpm
- Maximum Operating Temperature
- 50 Degrees C
- Air Consumption
- 88 lpm
- Pressure Port Gender
- Female
- Minimum Supply Pressure
- 0.45 MPa
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Number of Stages
- 1
- Minimum Operating Temperature
- -5 Degrees C
- Weight
- 26.9 lb
- Vacuum Port Gender
- Female
- Item
- Vacuum Generator
- Minimum Vacuum Pressure
- 0.1 MPa
- Pressure Port Type
- Push-to-Connect
- Maximum Vacuum Pressure
- 0.6 MPa
Description
Item Vacuum Generator, Air Consumption 88 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size Not Applicable, Exhaust Port Type Not Applicable, Includes Not Applicable, Maximum Flow Rate 40 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure 0.6 MPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.45 MPa, Minimum Vacuum Pressure 0.1 MPa, Nozzle Diameter 1.3, Number of Stages 1
