Smith Bearing

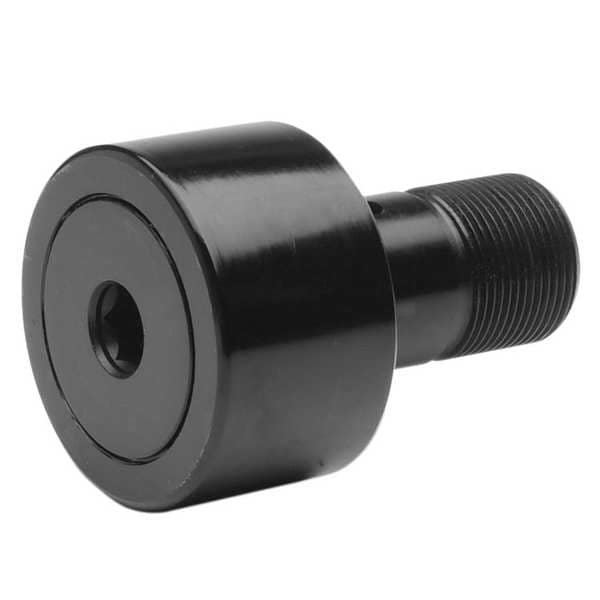

Cam Follower, Heavy Stud, Hex Socket Head

original price: $24.79
9% off
new price: $22.49
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Roller Style Heavy Stud
  • Roller Shape Flat
  • Face Design Hex Socket
  • Roller Dia. 1.125 in
  • Roller Width 5/8 in
See all product information

Product Information

Dimensions

Roller Dia. 1.125 in
Roller Width 5/8 in
Stud Dia. 0.625 in
Stud Length 1 in
Stud Length (In.) 1.000
Stud Dia. (In.) 0.6250
Thread Size 5/8-18
Roller Width (In.) 0.6250
Thread Length (In.) 0.5 in
Roller Dia. (In.) 1.1250
Stud Diameter 5/8 in
Stud Thread Size 5/8"-18
Roller Diameter 1 1/8 in
Stud Thread Length 1/2 in
Overall Length 1 21/32 in
Hex Drive Size 1/4 in

Details

Roller Style Heavy Stud
Roller Shape Flat
Face Design Hex Socket
Stud Type Concentric
Agency Compliance ABMA
Bearing Type Needle Roller
Type Heavy Stud
Static Load Capacity (Lb.) 6,200 lb
Number of Bearings 1
Roller Type Hex Socket Head
Bearing Material Alloy Steel
Roller Material Alloy Steel
Item Cam Follower
Dynamic Load Capacity (Lb.) 2,850 lb
Stud Material Carbon Steel
Maximum Temperature 250 Degrees F
Duty Type Heavy
Roller Material Grade 52100
Seal Type Contact
Static Radial Load Capacity 6,200 lbf
Standards ABMA
Dynamic Radial Load Capacity 2,850 lbf
Drive Location Stud
Load Direction Radial
Lubrication Openings Oiler Hole
Roller Head Type Flat
Features Rollers and Outer Races are Identical to the Standard CR Series, The Hex Head Heavy Stud Series have a Larger Diameter Stud and are Recommended for Applications with High Running Loads and/or Heavy Shocks Where Deflection Should be Held to a Minimum
Closure Double Sealed
Bearing Material Grade AISI 52100
Seal Material Molded Acetyl
Rolling Element Rows 1
Minimum Temperature -30 Degrees F
Drive Type Hex Socket
System of Measurement Inch

Description

Cam Follower, Closure Double Sealed, Drive Type Hex Socket, Duty Type Heavy, Face Design Hex Socket, Overall Length 1 21/32 in, Roller Diameter 1 1/8 in, Roller Head Type Flat, Roller Material Alloy Steel, Roller Width 5/8 in, Rolling Element Rows 1, Seal Type Contact, Stud Material Carbon Steel, Stud Thread Size 5/8 In.-18, Stud Type Concentric, System of Measurement Inch, Bearing Material Alloy Steel, Bearing Material Grade AISI 52100, Bearing Type Needle Roller, Drive Location Stud
