Shop SMITH-BLAIR
See all product information
Create Account

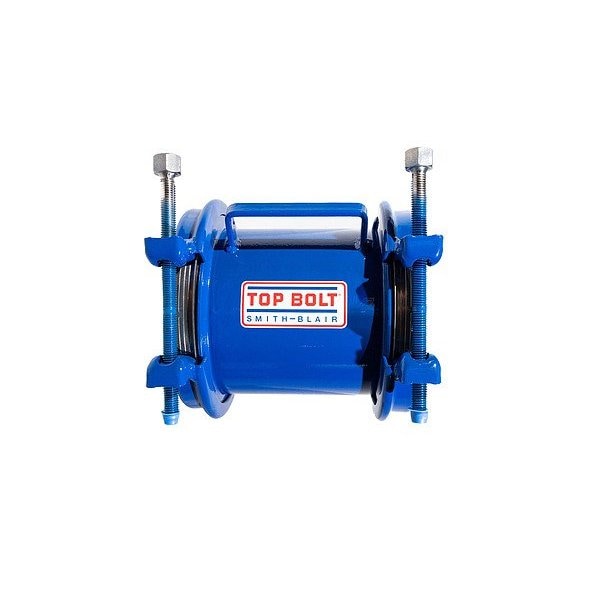

CouplingBody, CarbonSteel, 6", Flange4"
Mfr # 421-04460560-031
Zoro # G622738159
product price:Â
$
421.99
/ea
Free Shipping & Returns
Key Features
For Movement Type
Vibration
Specific Fitting Shape
Coupling Body
Fitting Outside Diameter
7 5/32 in
Bolt Material
Stainless Steel
Finish/Coating
Epoxy Coated
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 421-04460560-031
- Zoro #
- G622738159
- UPC #
- -
- Country of Origin
- China
Dimensions
- Fitting Outside Diameter
- 7 5/32 in
- Overall Length
- 10 3/4 in
- Side 2 Nominal Pipe Size
- 4 in
- Fitting Nominal Pipe Size
- 6 in
- Side 2 Outside Diameter
- 7 3/16 in
- Wire Rope Length
- 10 3/4 in
- Length
- 10 3/4 in
Details
- For Movement Type
- Vibration
- Specific Fitting Shape
- Coupling Body
- Bolt Material
- Stainless Steel
- Finish/Coating
- Epoxy Coated
- Item
- Bolted Coupling
- Side 2 Connection Gender
- Female
- Application
- Acids, Chemicals, Water
- Side 2 Connection Type
- Flange
- Seal Material
- NBR
- Includes Seal
- Yes
- Bolt Material Grade
- 304
- Series
- 421
- Standards
- AWWA C213, AWWA C219, NSF/ANSI 372, NSF/ANSI 61
- Maximum Operating Pressure
- 260 psi
Description
Bolted Coupling, Bolt Hole Diameter Not Applicable, Bolt Material Stainless Steel, Finish/Coating Epoxy Coated, Fitting Nominal Pipe Size 6 in, For Movement Type Vibration, Maximum Operating Pressure 260 psi, Overall Length 10 3/4 in, Pipe Fitting Material Carbon Steel, Seal Material NBR, Basic Fitting Shape Coupling, Standards AWWA C213, AWWA C219, NSF/ANSI 372, NSF/ANSI 61, Application Acids, Chemicals, Water
