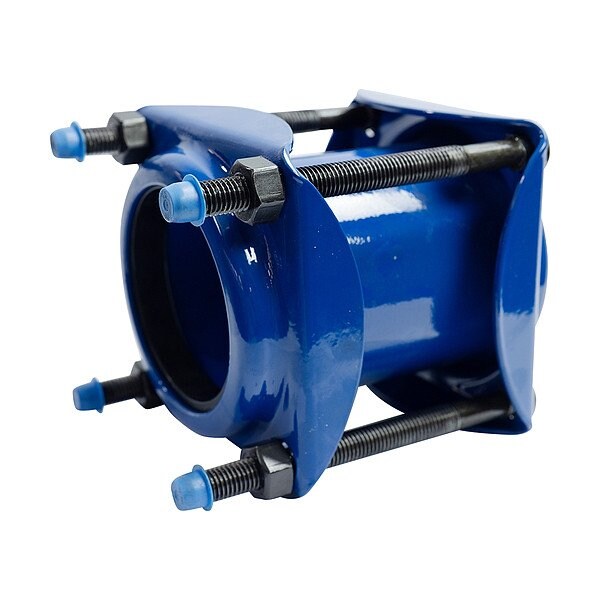

CouplingBody, Steel, Flange12", Flange
Mfr # 41100066301003
Zoro # G422738410
product price:Â
$
286.99
/ea
Free Shipping & Returns
Key Features
Series
411
Specific Fitting Shape
Coupling Body
Fitting Outside Diameter
12 in
Maximum Operating Pressure
150 psi
Standards
AWWA C219, NSF/ANSI 372, NSF/ANSI 61, UL Certified
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 41100066301003
- Zoro #
- G422738410
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Fitting Outside Diameter
- 12 in
- Side 2 Outside Diameter
- 12 in
- Fitting Nominal Pipe Size
- 12 in
- Overall Length
- 16 in
- Bolt Hole Diameter
- 5/8 in
- Wire Rope Length
- 16 in
- Length
- 16 in
Details
- Series
- 411
- Item
- Bolted Coupling
- Specific Fitting Shape
- Coupling Body
- Maximum Operating Pressure
- 150 psi
- Standards
- AWWA C219, NSF/ANSI 372, NSF/ANSI 61, UL Certified
- For Movement Type
- Vibration
- Seal Material
- NBR
- Side 2 Connection Type
- Flange
- Bolt Material
- Steel
- Application
- Acids, Chemicals, Water
- Side 1 Connection Gender
- Female
- Side 2 Connection Gender
- Female
- Finish/Coating
- Epoxy Coated
- For Pipe Schedule
- Schedule 80
- Includes Seal
- Yes
Description
Bolted Coupling, Bolt Hole Diameter 5/8 in, Bolt Material Steel, Finish/Coating Epoxy Coated, Fitting Nominal Pipe Size 12 in, Fitting Type Flange, For Movement Type Vibration, Maximum Operating Pressure 150 psi, Overall Length 16 in, Pipe Fitting Material Steel, Seal Material NBR, Basic Fitting Shape Coupling, For Pipe Schedule Schedule 80, Standards AWWA C219, NSF/ANSI 372, NSF/ANSI 61, UL Certified, Application Acids, Chemicals, Water
