Solberg

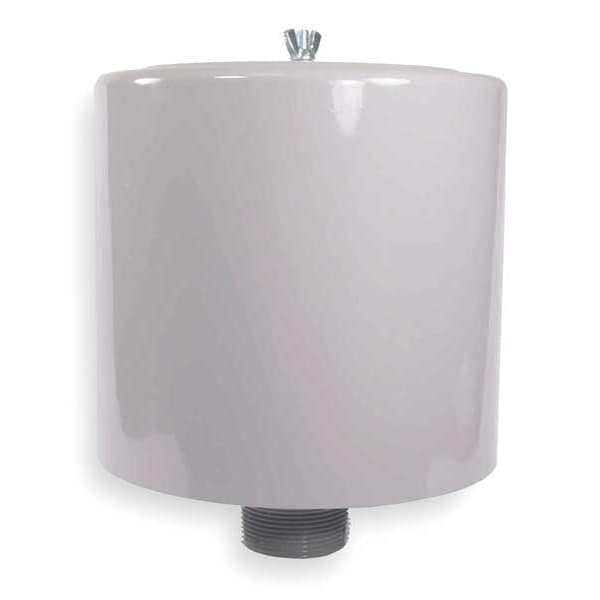

Filter/Silencer Inlet

product price: $185.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Outlet (In.) 3 (M)NPT
  • Max. Flow (CFM) 300 cfm
  • Filter Rating (Microns) 5 micron
  • Noise Reduction Rating NRR (dB) 5 to 15
  • Filter Media Polyester
See all product information

Product Information

Dimensions

Nipple Length (In.) 3 in
Dia. (In.) 10 in
Height (In.) 12 1/4 in
Overall Height 12.75 in
Outside Diameter 10.25 in
Nipple Length 3 in
Outlet Size 3 in

Details

Outlet (In.) 3 (M)NPT
Max. Flow (CFM) 300 cfm
Filter Rating (Microns) 5 micron
Noise Reduction Rating NRR (dB) 5 to 15
Filter Media Polyester
Design Filter Silencer
Temp. Range (F) -15 Degrees to 220 Degrees F
(M)NPT Outlet (In.) 3 in
Filter Efficiency (%) 99%
Item Filter Silencer
Housing Material Carbon Steel
For Use With 5F243, 6JD32
Filtration Efficiency 99 %
Number of Air Outlets 1
Minimum Operating Temperature -15 Degrees F
Maximum Flow Rate 300 cfm
Filter Rating 5 micron
Maximum Operating Temperature 220 Degrees F
Connection Style Screw On
Filter Material Polyester
Outlet Type MNPT
Filtered Substance Particulate
Series FS

Description

Item Filter Silencer, Connection Style Screw On, Design Hood, Filter Material Polyester, Filter Rating 5 micron, Filtered Substance Particulate, Filtration Efficiency 99 Percent, Housing Material Carbon Steel, Maximum Flow Rate 300 cfm, Maximum Operating Temperature 220 Degrees F, Minimum Operating Temperature -15 Degrees F, Nipple Length 3 in, Number of Air Outlets 1, Outlet Size 3 in, Outlet Type MNPT, Outside Diameter 10.25 in, Overall Height 12.75 in, Series FS
