  11. Pneumatic Oil Filter, 2 In. FNPT, 125 cfm

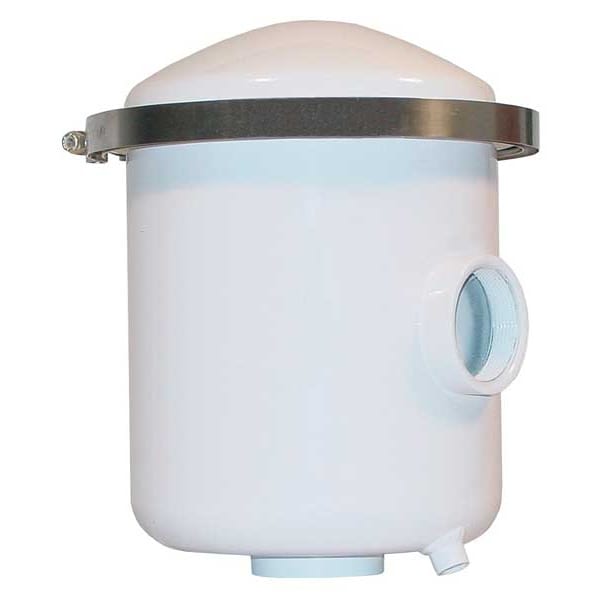

Solberg Pneumatic Oil Filter, 2 In. FNPT, 125 cfm HDL-PSG850/1-200HC - main

Pneumatic Oil Filter, 2 In. FNPT, 125 cfm

  • Mfr # HDL-PSG850/1-200HC

  • Zoro # G1785052

product price: $614.99
/ea
Free Shipping & Returns

Key Features

Item - Air Filters
Oil Removal Filter
Filter Rating - Air Treatment
0.3 micron
Connection Size - Air Treatment
2 in NPT
Max. Incoming Pressure - Air Treatment
14.7 psi
Max. Flow - Air Treatment
125 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HDL-PSG850/1-200HC
Zoro #
G1785052
UPC #
-
Country of Origin
United States

Dimensions

Connection Size - Air Treatment
2 in NPT
Size - Air Treatment
Subcompact
Overall Height
11 1/4 in
Overall Width
8 3/4 in
Drain Port Size
2 in FNPT
Air Inlet Size
2 in
Air Outlet Size
2 in
Inlet Size
2 in
Outlet Size
2 in
Outside Diameter
7 5/8 in

Details

Item - Air Filters
Oil Removal Filter
Filter Rating - Air Treatment
0.3 micron
Max. Incoming Pressure - Air Treatment
14.7 psi
Max. Flow - Air Treatment
125 cfm
Bowl Material - Air Treatment
Steel
For Removal Of
Oil Aerosols, Particles, Water
Max. Temp.
68 Degrees to 180 Degrees F
Drain Type
Manual
Item
Pneumatic Oil Filter
Housing Material
Carbon Steel
Max. Pressure
14.7 psi
Bowl Material
Carbon Steel
Filter Rating
0.3 micron
Drain Included
Yes
For Fluid Type
Oil
Filter Bowl Material
Steel
Filter Efficiency
99.97 %
Number of Air Inlets
1
Air Inlet Type
NPSC
For Substance Type
Oil
Maximum Operating Pressure
5 psi
Maximum Operating Temperature
180 Degrees F
Differential Pressure Indicator Included
No
Filter Type
Coalescing
Number of Air Outlets
1
Minimum Operating Temperature
68 Degrees F
Series
HDL
Maximum Flow Rate
125 cfm
Air Outlet Type
NPSC
Weight
15 lb
Body Material
Carbon Steel
Type
Vacuum Pump
Gauge Included
No
Filter Element Material
Polyester
Inlet Type
NPSC
Application
Any Application Requiring Low Delta P Coalescing of Large Air Volumes, Blower Exhaust Oil Mist, Captures Oil Fog, Mist, or Smoke from Exhaust on Oil Flooded Vacuum Pumps, Cement, Food Processing-Pressure, Industrial Vacuum Processes, Nailers/Staplers, Oil Removal for Pressure Unloading Vents on Piston Compressors, Paper Processing, Vacuum Coating, Vacuum Freeze Dry, Vacuum Outgassing
Outlet Type
NPSC
Maximum Air Flow
125 scfm
Filtration Efficiency
99.97 %

Description

Pneumatic Oil Filter, Outside Diameter 7 5/8 in, Inlet Size 2 in, Inlet Type NPSC, Outlet Size 2 in, Outlet Type NPSC, Maximum Air Flow 125 scfm, Type Vacuum Pump, Filter Rating 0.3 micron, Filtration Efficiency 99.97 Percent
