  11. Pneumatic Oil Filter, 4 In. MNPT, 500 cfm

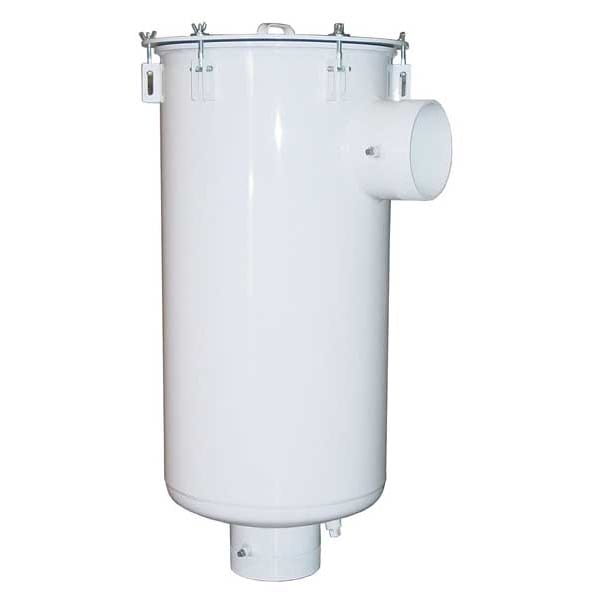

Solberg Pneumatic Oil Filter, 4 In. MNPT, 500 cfm HDL-PSG344/2-400 - main

Pneumatic Oil Filter, 4 In. MNPT, 500 cfm

  • Mfr # HDL-PSG344/2-400

  • Zoro # G1652427

product price: $2,329.99
/ea
Free Shipping & Returns

Key Features

Item - Air Filters
Oil Removal Filter
Filter Rating - Air Treatment
0.3 micron
Connection Size - Air Treatment
4 in NPT
Max. Incoming Pressure - Air Treatment
14.7 psi
Max. Flow - Air Treatment
500 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HDL-PSG344/2-400
Zoro #
G1652427
UPC #
-
Country of Origin
United States

Dimensions

Connection Size - Air Treatment
4 in NPT
Size - Air Treatment
Subcompact
Overall Height
31 1/8 in
Overall Width
14 in
Drain Port Size
4 in MNPT
Air Outlet Size
4 in
Air Inlet Size
4 in
Inlet Size
4 in
Outside Diameter
14 in
Outlet Size
4 in

Details

Item - Air Filters
Oil Removal Filter
Filter Rating - Air Treatment
0.3 micron
Max. Incoming Pressure - Air Treatment
14.7 psi
Max. Flow - Air Treatment
500 cfm
Bowl Material - Air Treatment
Steel
For Removal Of
Oil Aerosols, Particles, Water
Item
Pneumatic Oil Filter
Max. Temp.
68 Degrees to 180 Degrees F
Housing Material
Carbon Steel
Filter Rating
0.3 micron
Bowl Material
Carbon Steel
Drain Type
Manual
Max. Pressure
14.7 psi
Filter Bowl Material
Steel
Differential Pressure Indicator Included
No
For Fluid Type
Oil
Filter Type
Coalescing
Air Outlet Gender
Male
Minimum Operating Temperature
68 Degrees F
Number of Air Outlets
1
Series
HDL
Maximum Operating Temperature
180 Degrees F
For Substance Type
Oil
Drain Included
Yes
Air Inlet Type
MPT
Number of Air Inlets
1
Maximum Operating Pressure
7.25 psi
Maximum Flow Rate
500 cfm
Air Outlet Type
MPT
Air Inlet Gender
Male
Weight
78 lb
Filter Efficiency
99.97 %
Body Material
Carbon Steel
Type
Vacuum Pump
Gauge Included
No
Outlet Type
MPT
Inlet Gender
Male
Application
Any Application Requiring Low Delta P Coalescing of Large Air Volumes, Blower Exhaust Oil Mist, Captures Oil Fog, Mist, or Smoke from Exhaust on Oil Flooded Vacuum Pumps, Cement, Food Processing-Pressure, Industrial Vacuum Processes, Nailers/Staplers, Oil Removal for Pressure Unloading Vents on Piston Compressors, Paper Processing, Vacuum Coating, Vacuum Freeze Dry, Vacuum Outgassing
Outlet Gender
Male
Filtration Efficiency
99.97 %
Filter Element Material
Polyester
Inlet Type
MPT
Maximum Air Flow
500 scfm

Description

Pneumatic Oil Filter, Outside Diameter 14 in, Inlet Size 4 in, Inlet Type MPT, Inlet Gender Male, Outlet Size 4 in, Outlet Type MPT, Outlet Gender Male, Maximum Air Flow 500 scfm, Type Vacuum Pump, Filter Rating 0.3 micron, Filtration Efficiency 99.97 Percent
