  11. In-Ceiling Speaker, White, 50 Max. Wattage

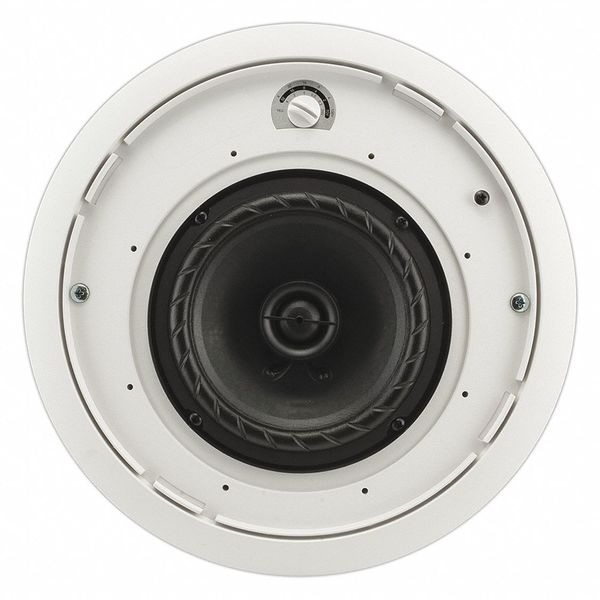

Soundtube In-Ceiling Speaker, White, 50 Max. Wattage CM62-EZ-II-WH - main

In-Ceiling Speaker, White, 50 Max. Wattage

  • Mfr # CM62-EZ-II-WH

  • Zoro # G3922182

product price: $200.99
/ea
Free Shipping & Returns

Key Features

Type
In Ceiling
Standards
CE Compliant, EN54, RoHS, UL1480A
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CM62-EZ-II-WH
Zoro #
G3922182
UPC #
-
Country of Origin
China

Dimensions

Overall Length (In.)
14
Overall Height (In.)
8
Tweeter Dia. (In.)
1 in
Woofer Dia. (In.)
6 1/2 in
Overall Width (In.)
14
Overall Width
11 3/4 in
Woofer Diameter
6 1/2 in
Overall Height
5 3/4 in
Tweeter Diameter
1 in
Overall Depth
11 3/4 in

Details

Item
In-Ceiling Speaker
Type
In Ceiling
Standards
CE Compliant, EN54, RoHS, UL1480A
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
White
Includes
Conduit Clamp, Cover Plate, Grille, Paint Mask, Tile Bridge or Pre-Construction Bracket
Sensitivity (dB)
90 dB
Weight (Lbs.)
10
Tweeter Composition
Silk
Woofer Composition
Fiber
Max. Wattage
50 W
Impedance (Ohms)
16 ohm
Watt (RMS)
50
Power Taps @ 25V
4
Power Taps @ 75V
32
Transformer Settings
25v/70v/100v
Frequency Response
125Hz to 20KHz
Number of Channels
1
Enclosure Style
Backcan
Dispersion - Conical
120 Degrees
Tweeter Material
Silk
Frequency Response - Minimum
65 Hz
For Location
Indoor
Compatible Input Voltage
100V, 25V, 70V
Frequency Response - Maximum
22 kHz
Transformer Taps @ Low Voltage
16 ohm
Housing Material
ABS Glass Fiber
Woofer Material
Fiber
Housing Color
White
Transformer Taps @ 25V
4 W
Power Style
Passive
Driver Configuration
2-Way
Transformer Taps @ 70V
32 W
Impedance
16 ohm
Output Wattage - Peak
100 W
Output Wattage - RMS
50 W
Sensitivity
87 dB
IP Rating
IPX3
Mounting Style
Flush Mount
Includes Mounting Hardware
Mounting Hardware Included
Includes Transformer
Transformer Included

Description

In-Ceiling Speaker, In Ceiling, Overall Height (In.) 8, Overall Width (In.) 14, Overall Length (In.) 14, Enclosure Color White, Enclosure Material Plastic/Metal, Tweeter Dia. (In.) 1 in, Tweeter Composition Silk, Woofer Dia. (In.) 6 1/2 in, Woofer Composition Fiber, 50 Watt (RMS), Max. Wattage 50 W, Sensitivity (dB) 90 dB, Impedance (Ohms) 16 ohm, Transformer Settings 25v/70v/100v, 4 Power Taps @ 25V, 32 Power Taps @ 75V, Frequency Response 125Hz to 20KHz, Weight (Lbs.) 10
