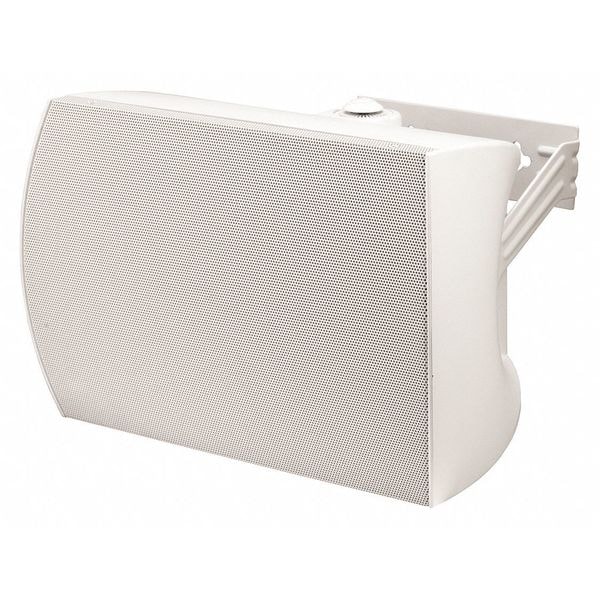

Soundtube Speaker, White, 75 Max. Wattage SM52-EZ-WX-WH - main

Speaker, White, 75 Max. Wattage

  • Mfr # SM52-EZ-WX-WH

  • Zoro # G3925122

product price: $251.99
/ea
Free Shipping & Returns

Key Features

Type
Outdoor
Standards
CE Compliant, EN54, RoHS, UL1480A
Indoor/Outdoor
Outdoor
Enclosure Material
Plastic/Metal
Enclosure Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SM52-EZ-WX-WH
Zoro #
G3925122
UPC #
748252172389
Country of Origin
China

Dimensions

Overall Length (In.)
13
Overall Height (In.)
11
Woofer Dia. (In.)
5 1/4 in
Tweeter Dia. (In.)
1 in
Overall Width (In.)
13
Woofer Diameter
5 1/4 in
Overall Height
12 in
Overall Depth
8 3/4 in
Tweeter Diameter
1 in
Overall Width
7 1/2 in

Details

Item
Speaker
Type
Outdoor
Standards
CE Compliant, EN54, RoHS, UL1480A
Indoor/Outdoor
Outdoor
Enclosure Material
Plastic/Metal
Enclosure Color
White
Includes
Back Cover, Mounting Hardware, Port Plug, Safety Cable, Wire Gland
Sensitivity (dB)
84 dB
Weight (Lbs.)
9
Tweeter Composition
Silk
Woofer Composition
Polypropylene/Butyl
Max. Wattage
75 W
Impedance (Ohms)
8 ohm
Power Taps @ 75V
32
Frequency Response
100Hz to 22KHz
Transformer Settings
25V/70V/100V
Watt (RMS)
75
Power Taps @ 25V
4
Number of Channels
1
Sensitivity
83 dB
Mounting Style
Surface Mount
Dispersion - Conical
70 Degrees
Impedance
8 ohm
Woofer Material
Polypropylene
Transformer Taps @ 25V
0.5 W, 1 W, 2 W, 4 W
Transformer Taps @ 70V
2 W, 4 W, 8 W, 16 W, 32 W
Includes Transformer
Transformer Included
Includes Mounting Hardware
Mounting Hardware Included
Power Style
Passive
For Location
Indoor, Outdoor
Transformer Taps @ Low Voltage
8 ohm
IP Rating
IP65
Output Wattage - RMS
50 W
Housing Material
Polystyrene
Tweeter Material
Silk
Frequency Response - Maximum
22 kHz
Compatible Input Voltage
100V, 25V, 70V
Output Wattage - Peak
100 W
Driver Configuration
2-Way
Enclosure Style
Backcan
Housing Color
White
Frequency Response - Minimum
62 Hz

Description

Speaker, Outdoor, Overall Height (In.) 11, Overall Width (In.) 13, Overall Length (In.) 13, Enclosure Color White, Enclosure Material Plastic/Metal, Tweeter Dia. (In.) 1 in, Tweeter Composition Silk, Woofer Dia. (In.) 5 1/4 in, Woofer Composition Polypropylene/Butyl, 75 Watt (RMS), Max. Wattage 75 W, Sensitivity (dB) 84 dB, Impedance (Ohms) 8 ohm, Transformer Settings 25V/70V/100V, 4 Power Taps @ 25V, 32 Power Taps @ 75V, Frequency Response 100Hz to 22KHz, Weight (Lbs.) 9
