Shop SOUTHWIRE

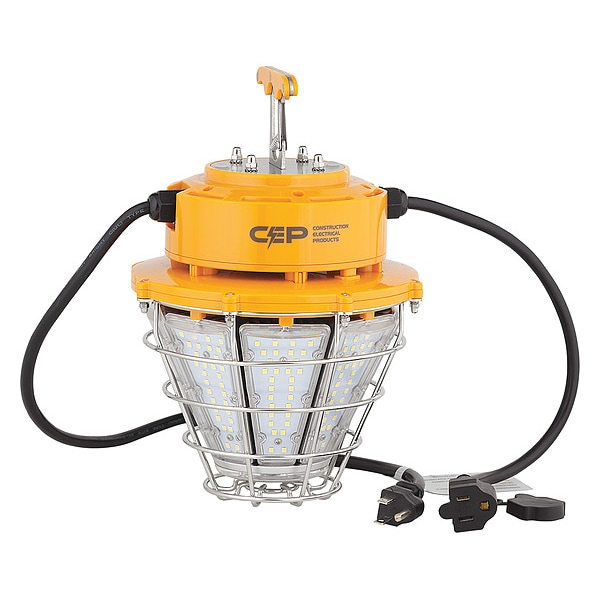

LED High Bay Fixture, 60W, 7200 lm, 5000K

  • Mfr # CL60LEDG2

  • Zoro # G4859010

product price:
$
202.99
/ea
Free Shipping & Returns

Key Features

Lighting Technology
LED
Lumens
7,200 Lumens
Light Distribution
Flood
Fixture Voltage
120 to 277
Color Temperature
5000K
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CL60LEDG2
Zoro #
G4859010
UPC #
-
Country of Origin
China
Lighting Technology
LED
Lumens
7,200 Lumens
Light Distribution
Flood
Fixture Voltage
120 to 277
Color Temperature
5000K
Standards
cETLus Listed for Damp Locations, RoHS Compliant
Fixture Type - High and Low Bay Fixtures
Linear High Bay
LED Replacement For
250W MH
Bulb Technology
LED
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Fixture Warranty
1 yr
Color Temp.
5000K
Lumens Per Watt
120.0
Fixture Lens Material
Tempered Glass
Lamp Watts - Fixtures
60 W
Fixture Housing Color
Orange
Fixture Rated Life
50,000 hr
Fixture Lens Type
Clear
Occupancy Sensor
No
Number of Light Bars
1
Dimmable
No
Fixture Temp. Range
-20 Degrees to 50 Degrees C
Fixture Mounting Type
Standard
Emergency Back Up Battery
No
Lighting Certification
Unrated
Fixutre Mounting Type
Standard
Fixture Series
CL
Color Rendering Index
85
Item
LED High Bay Fixture
Voltage
120 to 277V
Watts
60
Rated Life
50,000 Hrs
Includes
Wire Cage
Lumens per Watt
60 lm/W
Series
CL
Housing Color
Orange
For Bulb Type
LED
Bay Light Type
High Bay
Lamp Type
Integrated LED
Power Source
Corded
Number of Lamp Heads
1
Type - Job Site Lighting
Hanging
Lamp Watts
60 W
Job Light Type
Hanging Light
Operating Voltage
120 to 277V AC
Mount Type
Hook
Beam Angle
360 Degrees
Current
0.5 A @ 120V
Frame Color
Orange
Wattage
60 W
Lens Material
Tempered Glass
Includes Bulb
Yes
Hazardous Location Specification
Not Rated
Minimum Operating Temperature
-20 Degrees F
Cord Designation
SJTW
For Location
Indoor, Outdoor
NEMA Plug Configuration
5-15P
Number of Bulb Fixtures
1
Lamp Life
50,000 hr
Number of Cord Wires
3
Maximum Brightness
7,200 lm
Lamp Guard
Metal
Includes Mounting Hardware
Yes
Features
15A Female Receptacle to Daisy Chain Lights Downstream, Polycarbonate Impact Resistant Lenses, Spring Loaded Quick Mount Hook Allows Unit to be Mounted in Seconds, Tapered LED Panels for Greater Horizontal Lux, Wire Cage for Added Protection
Bulb Base Type
Screw In
Switch Type
No Switch
Plug Type
Straight Blade
Cord Wire Gauge
16 AWG
Maximum Operating Temperature
140 Degrees F
Damp/Wet Rating
cULus, Damp Location
Type
Hanging
Power Source - TS Only
Corded
Power Source - old
Corded

Description

LED High Bay Fixture, Bulb Base Type Screw In, Bulb Spacing Not Applicable, Color Temperature 5000K, Head Diameter Not Applicable, Lighting Technology LED, Maximum Brightness 7,200 lm, Mount Type Hook, Number of Bulb Fixtures 1, Operating Voltage 120 to 277V AC, Overall Depth 8 in, Overall Height 11.5 in, Power Cord Length 6 ft, String Overall Length Not Applicable, Switch Type No Switch, Wattage 60 W, Color Rendering Index 85, Hazardous Location Specification Not Rated
