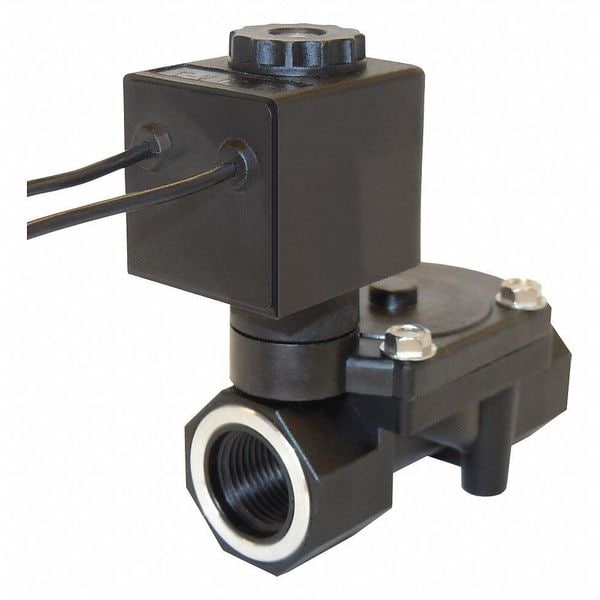

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 24V DC, Remote Pilot, Buna N
Mfr # 3585-020-9233B
Zoro # G8007921
product price:
$
70.15
/ea
Key Features
For Media
Air, Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Nominal Pipe Size
1/2 in
Inlet Connection Type
NPT
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 3585-020-9233B
- Zoro #
- G8007921
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 1/2 in
- Overall Height
- 3-3/16 in
- Overall Width
- 1-1/2 in
- Overall Length
- 2-23/32 in
- Orifice Diameter
- 1/2 in
- Wire Rope Length
- 2 23/32 in
- Length
- 2 23/32 in
Description
The SPARTAN SCIENTIFIC 3585-020-9233B is a normally closed, 2-way solenoid valve featuring a diaphragm valve design and pilot-operated actuation with an internal pilot actuator type. Constructed with a glass filled nylon body, it provides control over the flow of air and water through a 1/2 inch orifice and nominal pipe size. The valve includes an integrated coil and seal components, allowing for operation in ambient temperatures ranging from 50°F to 122°F and fluids up to 194°F. It is designed with a remote pilot valve type for automated flow control in pneumatic and hydraulic systems.
Key Features:
- Valve Type: Remote Pilot, Diaphragm
- Valve Configuration: 2-Way, 2-Position, Normally Closed
- Body Material: Glass Filled Nylon
- Connections: Inlet and Outlet NPT threaded
- Orifice Diameter: 1/2 inch
- Operating Voltage: 24 V DC with 6.5 W coil wattage
- Electrical Connections: Wire Leads
- Coil Enclosure: Watertight, Dust Tight, Class F insulation
- Environmental Rating: Outdoor, NEMA 4, IP65
- Operating Pressure Differential: 10 psi minimum to 150 psi maximum for air, water, and light oil
- Media: Air, Water
- Seal Material: Buna N
- Overall Dimensions: Length 2-23/32 in, Height 3-3/16 in, Width 1-1/2 in
- Standards: CE Certified
