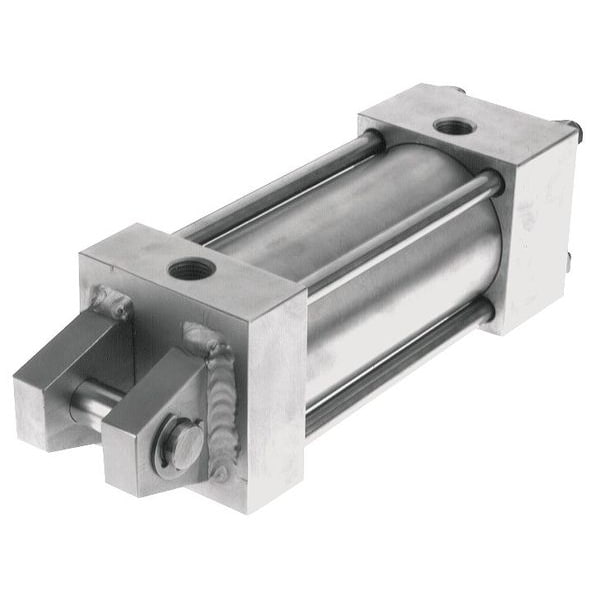

Air Cylinder, 3 1/4 in Bore, 16 1/2 in Stroke, NFPA Double Acting, Stainless Steel .

  • Mfr # 5VDE2
  • Zoro # G7659312
product price:
$
1,787.99
/ea
Free Shipping & Returns

Key Features

Cylinder Action
Double Acting
Bore Dia.
3 1/4 in
Max. Pressure
250 psi
Body Material
Stainless Steel
Rod Dia.
1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5VDE2
Zoro #
G7659312
UPC #
190735657430
Country of Origin
United States

Dimensions

Bore Dia.
3 1/4 in
Rod Dia.
1 in
Overall Length
25.25 in
Rod Thread Length
1 1/8 in
Pivot Hole Dia.
0.75 in
Port Size
1/2 in NPT
Dimension E
3 3/4 in
Dimension G
1.75 in
Dimension D
0.812 in
Air Cylinder Bore Dia.
3 1/4 in
Dimension L
1 1/4 in
Rod Thread Size
3/4"-16
Dimension J
1.25 in
Dimension M
0.75 in
Dimension Cb
1.25 in
Dimension Kk
3/4"-16
Dimension Cd
0.75 in
Dimension C
1/2 in
Dimension B
1 1/2 in
Dimension A
1 1/8 in
Bore Diameter
3 1/4 in
Rod Diameter
1 in
Overall Height
25 1/4 in
Inlet Size
1/2"
Stroke Length
16 1/2 in

Details

Item
Air Cylinder
Cylinder Action
Double Acting
Max. Pressure
250 psi
Body Material
Stainless Steel
Tube Material
Stainless Steel
Cylinder Type
Tie Rod
Magnetic Piston
Non-Magnetic Piston
Stroke
16 1/2 in
Mount
Clevis
Max. Load
2,073 lb
Air Cylinder Type
NFPA
Cushion Type
Adjustable
Finish
Silver
Features
Adjustable Air Cushion, Switch Ready
Piston Rod Material
Stainless Steel
Temp. Range
-20 Degrees to 200 Degrees F
Piston Material
Aluminum
Air Cylinder Mount
Clevis
Tie Rod Material
Stainless Steel
End Cap Material
Stainless Steel
Single Acting/Double Acting
Double Acting
Standards
NFPA
Air Inlet Type
NPT
For Fluid Type
Air
Maximum Operating Pressure
250 psi
Mounting Orientation
Multiposition
Maximum Operating Temperature
200 Degrees F
Minimum Operating Temperature
-20 Degrees F
System of Measurement
Inch
Body Material Finish
Silver Plated
Cylinder Repair
Repairable

Description

Air Cylinder, Body Material Stainless Steel, Cylinder Type Tie Rod, Cylinder Repair Repairable, Magnetic Piston Non-Magnetic Piston, Mounting Type Clevis, Bore Diameter 3 1/4 in, Cushion Type Adjustable, Stroke Length 16 1/2 in, Inlet Size 1/2 In., Air Inlet Type NPT, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, System of Measurement Inch, Body Material Finish Silver Plated, Tie Rod Material Stainless Steel, Overall Height 25 1/4 in, Maximum Operating Pressure 250 psi
