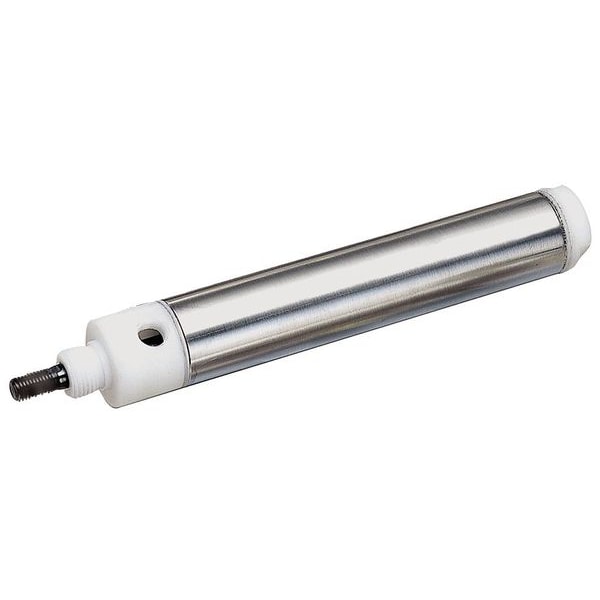

Air Cylinder, 9/16 in Bore, 3 in Stroke, Round Body Double Acting, Stainless Steel .
Mfr # 5TRA2
Zoro # G0172952
product price:Â $40.99
/eaKey Features
Cylinder Action
Double Acting
Bore Dia.
9/16 in
Max. Pressure
100 psi
Body Material
Stainless Steel
Rod Dia.
0.188 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5TRA2
Zoro #
G0172952
UPC #
190735649350
Country of Origin
United States
Dimensions
Bore Dia.
9/16 in
Rod Dia.
0.188 in
Overall Length
5.78 in
Rod Thread Length
1/2 in
Port Size
#10-32 UNF
Dimension J
0.19 in
Dimension B
0.437 in
Air Cylinder Bore Dia.
9/16 in
Dimension A
1/2 in
Rod Thread Size
#10-32
Dimension Kk
#10-32 UNF
Dimension N1
7/16"-20
Dimension Cc
0.188 in
Dimension E
0.50 in
Stroke Length
3 in
Inlet Size
#10-32
Bore Diameter
9/16 in
Nose Mount Thread Size
7/16"-20
Rod Diameter
3/16 in
Overall Height
5 3/4 in
Description
Air Cylinder, Body Material Stainless Steel, Cylinder Type Round Body, Cylinder Repair Non-Repairable, Magnetic Piston Non-Magnetic Piston, Mounting Type Nose, Bore Diameter 9/16 in, Cushion Type None, Stroke Length 3 in, Inlet Size #10-32, Air Inlet Type UN, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, System of Measurement Inch, Body Material Finish Silver Plated, Overall Height 5 3/4 in, Inlet Gender Female, Maximum Operating Pressure 100 psi
