  11. Air Motor, 1.7 HP, 78 cfm, 3000 rpm
Shop All Air Motors
Speedaire

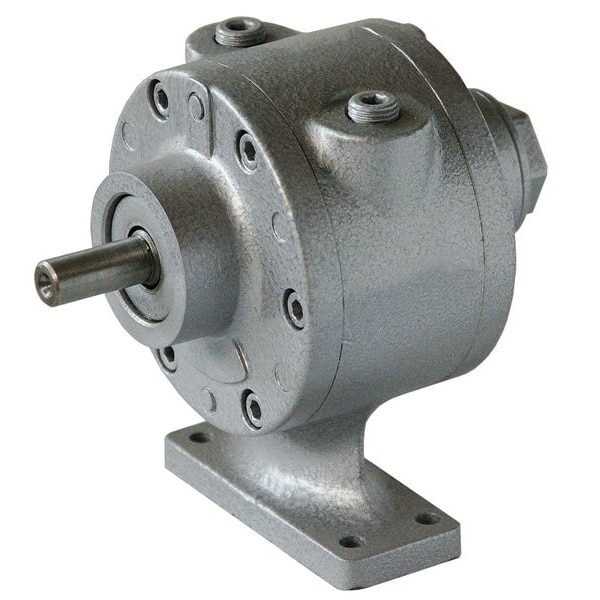

Air Motor, 1.7 HP, 78 cfm, 3000 rpm

product price: $204.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Running Torque @ Max. Pressure 36 in-lb
  • Max. Air Flow 78 cfm
  • HP 1.7 hp
  • No Load RPM 3,000 RPM
  • Shaft Dia. 1/2 in
See all product information

Product Information

Dimensions

Shaft Dia. 1/2 in
Port Size 1/4 in NPT
Overall Length 5 7/8 in
Overall Height 5 3/8 in
Shaft Length 1 1/8 in
Overall Width 3 3/4 in
Outside Diameter 4 in
Shaft Diameter 1/2 in
Keyway Width 1/8 in
Manufacturers Warranty Length 1 yr
Inlet Size 1/4 in
Keyway Depth 1/8 in

Details

Item Air Motor
Running Torque @ Max. Pressure 36 in-lb
Max. Air Flow 78 cfm
HP 1.7 hp
No Load RPM 3,000 RPM
Mounting Foot
Rotation CW/CCW
Housing Material Aluminum, Cast Iron
RPM @ Max. Torque 300 RPM
Finish Gray
Operating Temp. Range 0 Degrees to 250 Degrees F
Max. Air Pressure 100 psi
Includes Muffler
Mount Type Foot
Weight 7.28 lb
Output Power @ Maximum Speed 1.7 hp
Mounting Orientation Any Angle
Minimum Ambient Temperature 0 Degrees F
No Load Speed 3,000 RPM
Housing Material Finish Painted
Air Inlet Center to Center Distance 2 1/2 in
Minimum Operating Pressure 1.4 bar
Inlet Gender Female
Minimum Flow Rate 5.28 cfm
Shaft Material Steel
Nameplate Speed 300 RPM
Shaft Material Grade 40Cr
Keyway Type Half-Round Key
System of Measurement Inch
Motor Frame Material Cast Iron
Air Inlet Type NPT
Air Consumption 78 cfm
Maximum Flow Rate 78 cfm
Maximum Operating Pressure 100 psi
Maximum Ambient Temperature 250 Degrees F
Maximum Torque 36 in-lb
Speed @ Maximum Torque 300 RPM
Shaft Orientation Inline
Number of Vanes 4

Description

Air Motor, Output Power @ Maximum Speed 1.7 hp, Maximum Torque 36 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 78 cfm, Shaft Diameter 1/2 in, Shaft Length 1 1/8 in, Mount Type Foot, Inlet Size 1/4 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Aluminum, Cast Iron, Shaft Material Grade 40Cr, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/8 in, Weight 7.28 lb, Housing Material Grade Not Applicable
