  11. Air Motor, 4 HP, 128 cfm, 3000 rpm
Shop All Air Motors
Speedaire

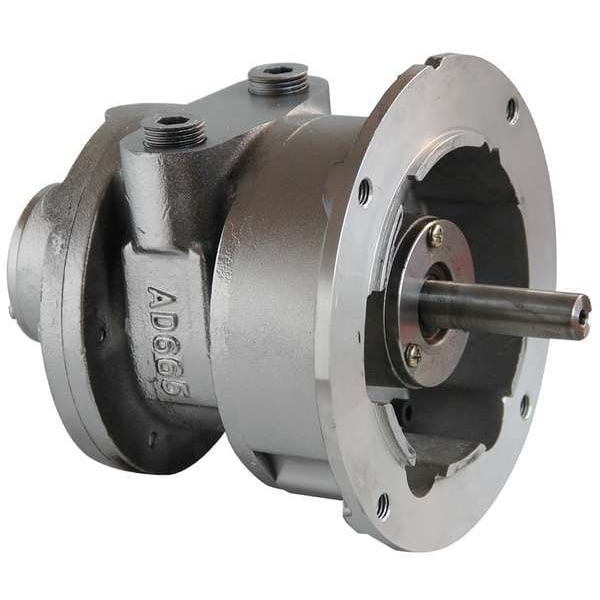

Air Motor, 4 HP, 128 cfm, 3000 rpm

original price: $336.70
9% off
new price: $303.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Running Torque @ Max. Pressure 84 in-lb
  • HP 4 hp
  • Max. Air Flow 128 cfm
  • No Load RPM 3,000 RPM
  • Shaft Dia. 5/8 in
See all product information

Product Information

Dimensions

Shaft Dia. 5/8 in
Port Size 1/2 in NPT
Overall Length 8 1/8 in
Keyway Length 1 3/8 in
Shaft Length 2 in
Overall Height 6 1/2 in
Overall Width 6 1/2 in
Outside Diameter 5 in
Inlet Size 1/2 in
Manufacturers Warranty Length 1 yr
Keyway Depth 1/8 in
Keyway Width 1/4 in
Shaft Diameter 5/8 in

Details

Item Air Motor
Running Torque @ Max. Pressure 84 in-lb
HP 4 hp
Max. Air Flow 128 cfm
No Load RPM 3,000 RPM
Mounting Flange
Rotation CW/CCW
Operating Temp. Range 0 Degrees to 250 Degrees F
RPM @ Max. Torque 300 RPM
Finish Gray
Housing Material Aluminum, Cast Iron
Max. Air Pressure 100 psi
Includes Muffler
Mount Type Flange
Weight 15.44 lb
Maximum Operating Pressure 100 psi
Motor Frame Material Cast Iron
Output Power @ Maximum Speed 4 hp
Nameplate Speed 300 RPM
Shaft Orientation Inline
Mounting Orientation Any Angle
Air Inlet Center to Center Distance 2 3/4 in
Air Consumption 128 cfm
Minimum Operating Pressure 1.4 bar
Keyway Type Flat Key
Minimum Flow Rate 12.66 cfm
Speed @ Maximum Torque 300 RPM
Maximum Ambient Temperature 250 Degrees F
Shaft Material Steel
Housing Material Finish Painted
Maximum Flow Rate 128 cfm
Shaft Material Grade 40Cr
Inlet Gender Female
No Load Speed 3,000 RPM
Maximum Torque 84 in-lb
Air Inlet Type NPT
Minimum Ambient Temperature 0 Degrees F
System of Measurement Inch
Number of Vanes 4

Description

Air Motor, Output Power @ Maximum Speed 4 hp, Maximum Torque 84 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 128 cfm, Shaft Diameter 5/8 in, Shaft Length 2 in, Mount Type Flange, Inlet Size 1/2 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Aluminum, Cast Iron, Shaft Material Grade 40Cr, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/4 in, Weight 15.44 lb, Housing Material Grade Not Applicable
