Speedaire

Air Regulator, 2 In NPT, 2,000 cfm, 450 psi

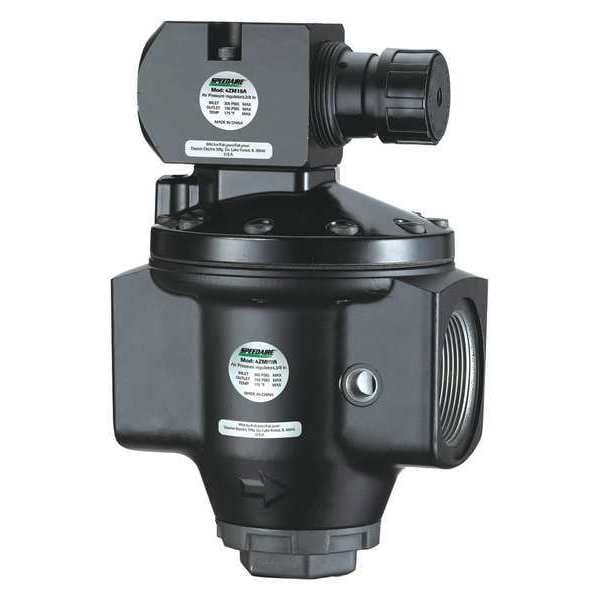

Speedaire Air Regulator, 2 In NPT, 2,000 cfm, 450 psi 4ZM12
Tap to zoom
Hover or click to zoom
$730.39
  • Item: Compressed Air Regulator
  • Max. Inlet Pressure - Regulators: 450 psi
  • Valve Design: Balanced
See full product details
This item ships free.

Total: $730.39

Speedaire #4ZM12 Specifications

  • Item: Compressed Air Regulator
  • Max. Inlet Pressure - Regulators: 450 psi
  • Valve Design: Balanced
  • Overall Height (Regulators): 9.71"
  • Adjustment Range - Regulators: 5 to 150 psi
  • Max. Inlet Pressure (Regulators): 450 psi
  • Adjustment Knob: Nonrising
  • Body Material: Zinc
  • Overall Width (Regulators): 5.98"
  • Overall Height - Regulators: 9.71 in
  • Overall Width - Regulators: 5.98 in
  • Compressed Air Regulator Product Grouping: General Purpose Air Regulator
  • Max. Flow - Regulators: 2,000 cfm
  • Pipe Size - Regulators: 2 in
  • Adjustment Range (Regulators): 5 to 150 psi
  • Pipe Size (Regulators): 2"
  • Max. Temp. - Regulators: 175 Degrees F
  • Gauge Port: 1/4 in NPT
  • Max. Temp. (Regulators): 175 Degrees F
  • Max. Flow (Regulators): 2000 cfm
  • Overall Height: 9 11/16 in
  • Overall Width: 6 in
  • Pressure Gauge Port Type: NPT
  • Adjustment Mechanism: Nonrising
  • Air Inlet Type: NPT
  • Pressure Gauge Port Size: 1/4 in
  • Air Outlet Size: 2 in
  • Inlet Size (Combined): 2 in NPT
  • Maximum Operating Temperature: 175 Degrees F
  • Air Inlet Gender: Female
  • Maximum Operating Pressure: 450 psi
  • Air Inlet Size: 2 in
  • Air Outlet Type: NPT
  • Maximum Flow Rate: 2,000 cfm
  • Air Outlet Gender: Female
  • Regulator Body Material: Aluminum or Zinc
  • Pressure Gauge Included: No
  • Country of Origin (subject to change): China

Description

General Purpose Air Regulator, Pipe Size - Regulators 2 in, Max. Flow - Regulators 2,000 cfm, Max. Inlet Pressure - Regulators 450 psi, Max. Temp. - Regulators 175 Degrees F, Adjustment Range - Regulators 5 to 150 psi, Nonrising Adjustment Knob, 1/4 in NPT Gauge Port, Balanced Valve Design, Overall Height - Regulators 9.71 in, Overall Width - Regulators 5.98 in, Body Material Zinc

Restrictions and Compliance

Reviews of Speedaire #4ZM12
