Shop All Positive Displacement Blowers
Speedaire

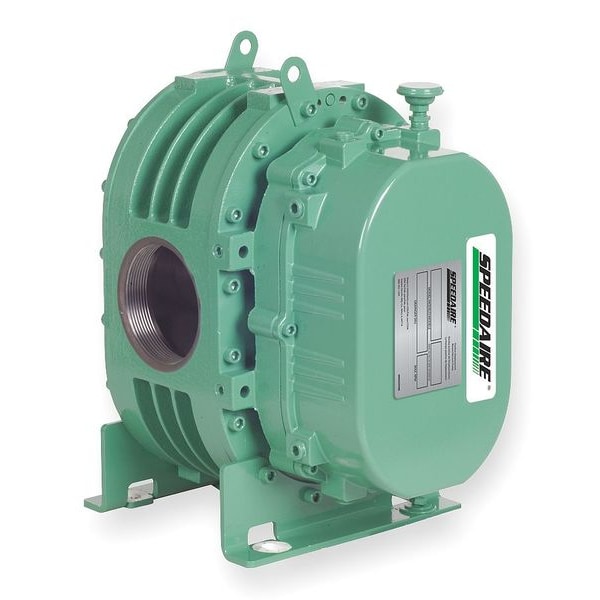

Blower/Vacuum Pump, 0.17 cu ft/Rev

product price: $3,425.99
/ea
Item requires special delivery charges. A $150.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Inlet Dia. 3 in (F)NPT
  • Outlet Dia. 3 in (F)NPT
  • Displacement 2.04 cu in/rev
  • Max. Pressure 7 psi
  • Max. Vacuum 14.0 in Hg
See all product information

Product Information

Dimensions

Inlet Dia. 3 in (F)NPT
Outlet Dia. 3 in (F)NPT
Shaft Dia. 0.875 in
Overall Width 18.67 in
Shaft Length 2 3/8 in
Overall Depth 8.37 in
Keyway Length 2 in
Overall Height 12.68 in
Keyway Width 3/16 in
Outlet Size 3 in
Inlet Size 3 in
Shaft Diameter 7/8 in

Details

Displacement 2.04 cu in/rev
Max. Pressure 7 psi
Max. Vacuum 14.0 in Hg
RPM Range 1337 to 3600
CFM Range 197 to 579
HP Required 1.6 hp - 20.3 hp
Standards ISO 9001
Item Positive Displacement Blower
Maximum Speed 3,600 RPM
Minimum Power Required 1.6 hp
Maximum Vacuum 14 in Hg
Maximum Power Required 20.3 hp
Inlet Type NPT
Maximum Air Flow 579 cfm
Inlet Gender Female
Maximum Operating Pressure 7 psi
Minimum Air Flow 197 cfm
Duty Cycle Continuous
Configuration V-BHC
Minimum Speed 1,337 RPM
Outlet Gender Female
Outlet Type NPT

Description

Positive Displacement Blower, Configuration V-BHC, Inlet Size 3 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 3 in, Outlet Type NPT, Outlet Gender Female, Displacement 2.04 cu in/rev, Maximum Operating Pressure 7 psi, Maximum Vacuum 14 in Hg, Maximum Speed 3,600 RPM, Minimum Speed 1,337 RPM, Maximum Air Flow 579 cfm, Minimum Air Flow 197 cfm, Maximum Power Required 20.3 hp, Minimum Power Required 1.6 hp, Shaft Diameter 7/8 in
