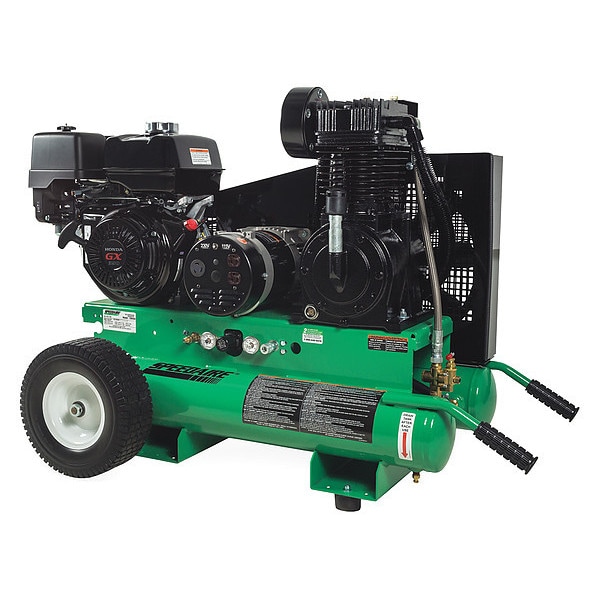

Compressor/Generator, Portable, Recoil

Mfr # AG2-PH13-08G1
Zoro # G8478206

3,749.99

Additional $270.00 delivery surcharge applies per item.

Key Features

Item - Air Compressor

Portable Air Compressor, Generator

Engine HP - Air Compressor

13.0 hp

Rated Watts - Air Compressor, Generator

2300/3500

Free Air CFM @ 90 PSI - Air Compressor

17.0

Tank Size - Air Compressor

8.0 gal

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: AG2-PH13-08G1
Zoro #: G8478206
UPC #: 190735601440
Country of Origin: United States

Dimensions

Tank Size - Air Compressor: 8.0 gal
Overall Length: 44 in
Overall Width: 22 in
Overall Height: 34 in
Tank Size: 8 gal.
Air Tank Size: 8 gal
Outlet Size: 1/4 in
Wire Rope Length: 44 in
Length: 44 in

Details

Item - Air Compressor: Portable Air Compressor, Generator
Engine HP - Air Compressor: 13.0 hp
Rated Watts - Air Compressor, Generator: 2300/3500
Free Air CFM @ 90 PSI - Air Compressor: 17.0
Tank Style - Air Compressor: Twin
Engine Starter Type - Air Compressor: Recoil
Fuel Tank Capacity - Air Compressor: 1.7 gal
Sound Level - Air Compressor: 80.4 dB
(F)NPT Outlet: 1/4 in
Pump Type: Reciprocating
Rated Watts: 2300/3500
Pump Oil Capacity: 24.7 oz
Number of Stages - Air Compressor: 2
Engine Oil Capacity: 37 oz
Weight - Air Compressor: 365 lb
Run Time @ 1/2 Load: 5.3 hr
Full Power Switch: On/Off
Hz: 60
Free Air CFM @ Max. Pressure - Air Compressor: 15.7
Tank Type: Twin
Watts: 3500
Max. Watts @ 120V: 4,000 W
Engine Brand: Honda
Low Oil Shut Down: Yes
Max. Pressure: 175 psi
Item: Portable Air Compressor/Generator
Voltage: 120
Sound Level dB: 80.4
RPM: 3,600 RPM
Weight: 365 lb
Pump Type - Air Compressor: Piston
Starter Type: Recoil
Free Air CFM @ Max. Pressure: 15.7
Fuel Type - Engine: Gasoline
HP: 13.0
Amps @ 120/240V: 33.3/16.7 A
Number of Outlets: 3
Engine Brand - Air Compressor: Honda
Sleeves: Cast Iron
Includes: (2) Gauges, Regulator
Run Time @ Full Load: 3.8 hr
Lubrication Type - Air compressor: Oil Lubricated
Free Air CFM @ 90 PSI: 17.0
Guard Type: Steel
Fuel Tank Capacity: 1.7 gal
Pump RPM: 864
Max. Pressure - Air Compressor: 175 psi
Engine Starter Type: Recoil
Outlet Type: NPT
Maximum Operating Pressure: 175 psi
Compressor Type: Portable
Engine Output Current: 33.3/16.7 A
Engine Output Power: 13 hp
Free Air Flow Rate @ Maximum Pressure: 15.7 cfm
Full-Load Run Time: 3.8 hr
Frequency: 60 Hz
Compressor Oil Capacity: 24.7 oz
Fuel Type: Gasoline
Sound Level: 80.4 dB
Maximum Speed: 3,600 RPM
Lubrication Required: Yes
Mobility: Portable
Low Oil Shutdown: Yes
Lubrication Type: Oil Lubricated
Outlet Connection Type: NPT
Number of Stages: 2
Outlet Gender: Female
Air Tank Style: Wheelbarrow
Wattage: 4,000 W

Description

Portable Air Compressor/Generator, Fuel Type Gasoline, Number of Stages 2, Engine Output Power 13 hp, Engine Brand Honda, Free Air Flow Rate @ Maximum Pressure 15.7 cfm, Maximum Operating Pressure 175 psi, Air Tank Size 8 gal, Air Tank Style Wheelbarrow, Engine Starter Type Recoil, Sound Level 80.4 dB, Pump Type Reciprocating, Wattage 4,000 W, Maximum Speed 3,600 RPM, Engine Output Current 33.3/16.7 A

Restrictions

This item has been restricted from sale in the following states: CA
