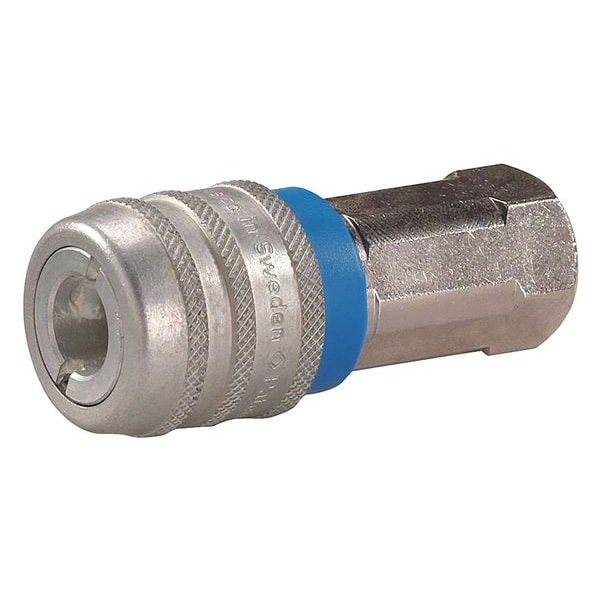

Coupler Body, (F)NPT, 1/4, Brass/Steel
Mfr # 30E529
Zoro # G4977357
product price:
$
28.15
/ea
Key Features
Interchange Type
Industrial
Material
Steel
Coupling Component
Socket
Hose Fitting Gender
Female
Connection Type
Threaded
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 30E529
- Zoro #
- G4977357
- UPC #
- 190735611715
- Country of Origin
- China
- Item
- Quick Connect Air Coupling
- Interchange Type
- Industrial
- Material
- Steel
- Coupling Component
- Socket
- Hose Fitting Gender
- Female
- Connection Type
- Threaded
- Finish/Coating
- Zinc-Plated
- Max. Flow Rate
- 991.09 lpm
- Coupling Locking Type
- Push-to-Connect
- Seal Material
- Nitrile
- Includes Valve
- Yes
- Color
- Silver
- Temp. Range
- -40 Degrees to 150 Degrees F
- Application
- Used on End of Hose or Air Supply
- For Use With
- Industrial Interchange Plug
- Valve Type
- Poppet
- Barbed
- No
- Max. Working Pressure @ 70 F
- 175 psi
- Connection Thread Type
- NPT
Description
The SPEEDAIRE - 30E529 is a quick connect hose coupling is configured for push-to-connect assembly and disassembly without tools at the end of a hose or air supply. it has a push-to-connect locking mechanism and includes a poppet valve to control fluid or air flow. is compatible with industrial interchange plugs (per the specified coupling interface), this female coupling supports a 1/4 inch hose fitting size and connection thread size of 1/4" -18 NPT, is intended to form a sealed connection when properly coupled. is constructed of zinc-plated steel and utilizes nitrile seals, has an operating temperature rating of -40°F to 150°F.
Key Features:
- Quick connect socket component with 1/4 in coupling size and specified body size.
- it has a push-to-connect locking mechanism for push-to-connect assembly and disassembly.
- Includes a poppet valve integrated in the coupling for controlling flow through the integrated poppet valve.
- has a maximum flow rate of 991.09 L/min and a maximum working pressure of 175 psi at 70°F.
- Constructed of zinc-plated steel with nitrile sealing elements.
- Designed for use with industrial interchange plugs (per the specified coupling interface) and applied on ends of hoses or air supplies.
- Hose fitting is female with NPT connection type.
