Coupler Body, (M)NPT, 1/4, Aluminum
Mfr # 30E624
Zoro # G5033987
product price:
$
22.59
/ea
Zoro's best price: not eligible for any other offers or promotions
Key Features
Interchange Type
Global Style High Flow
Material
Aluminum
Coupling Component
Socket
Hose Fitting Gender
Male
Connection Type
Threaded
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 30E624
- Zoro #
- G5033987
- UPC #
- 190735612651
- Country of Origin
- China
Dimensions
- Hose Fitting Size
- 1/2 in
- Coupling Size
- 1/4 in
- Thread Size
- 1/2"-14
- Body Size - Quick Connect Air Couplings
- 1/4 in
Details
- Item
- Quick Connect Air Coupling
- Interchange Type
- Global Style High Flow
- Material
- Aluminum
- Coupling Component
- Socket
- Hose Fitting Gender
- Male
- Connection Type
- Threaded
- Finish/Coating
- Anodized
- Max. Flow Rate
- 1,415.84 lpm
- Coupling Locking Type
- Push-to-Connect
- Seal Material
- Nitrile
- Includes Valve
- Yes
- Color
- Silver
- Temp. Range
- -40 Degrees to 150 Degrees F
- Application
- Used on End of Hose or Air Supply
- Valve Type
- Poppet
- Max. Working Pressure @ 70 F
- 250 psi
- Barbed
- No
- For Use With
- Connection to Quick Coupler Plug
- Connection Thread Type
- NPT
Description

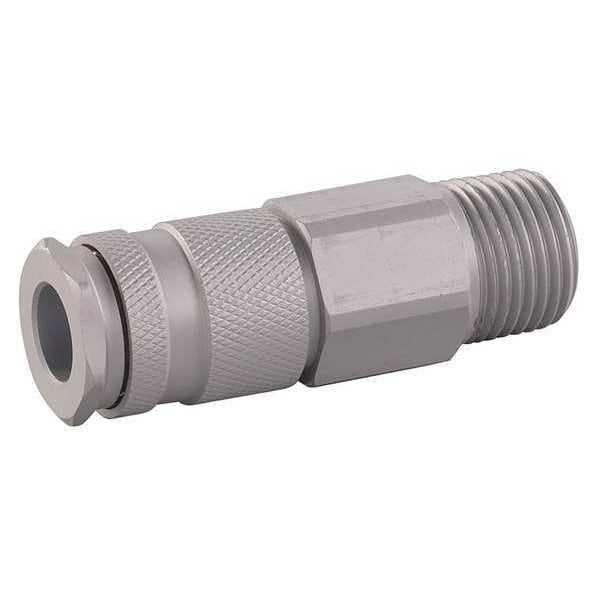

The SPEEDAIRE - 30E624 is a quick connect hose coupling designed for tool-free and rapid connection or disconnection of a hose to air supply lines or other compatible equipment. It features a push-to-connect locking mechanism and includes an integrated poppet valve to control airflow. Constructed from aluminum with an anodized finish, this coupling features a seal intended to reduce leakage at the rated operating conditions. The fitting is intended for pneumatic applications and fluid transfer when used with compatible hoses and couplings. Is designed to connect to quick coupler plugs using the specified hose fitting size and thread type.
Key Features:
- Hose fitting size: 1/2 in with a corresponding thread size of 1/2""-14 and male gender.
- Coupling size and body size are both 1/4 in, compatible with a 1/4 in NPT connection type.
- Includes a socket coupling component.
- Maximum working pressure rating of 250 psi at 70°F.
- Seal material composed of nitrile.
- rated operating temperature range: -40°F to 150°F
- Interchange type: Global Style High Flow.
- Finished with anodized coating.
