Coupler Plug, (F)NPT, 1/4, Steel
- Mfr # 30E696
- Zoro # G4869304
Key Features
Specifications
Details
- MFR #
- 30E696
- Zoro #
- G4869304
- UPC #
- 190735613375
- Country of Origin
- China
- Item
- Quick Connect Air Coupling
- Interchange Type
- Industrial
- Material
- Steel
- Coupling Component
- Plug
- Hose Fitting Gender
- Female
- Connection Type
- Threaded
- Finish/Coating
- Nickel-Plated
- Max. Flow Rate
- 1,132.67 lpm
- Coupling Locking Type
- Sleeve
- Seal Material
- Buna-N
- Includes Valve
- No
- Color
- Silver
- Temp. Range
- -40 Degrees to 150 Degrees F
- Standards
- ISO 6150, MIL-C-4109F
- Application
- Used on End of Hose or Tool Inlet
- Barbed
- No
- Max. Working Pressure @ 70 F
- 300 psi
- For Use With
- Industrial Interchange Coupler
- Connection Thread Type
- NPT
- Shell Material
- Steel
- Wire Color
- Silver
- Compatible Product Type
- Industrial Interchange Coupler
- Traction Material
- Steel
Dimensions
- Hose Fitting Size
- 1/4 in
- Coupling Size
- 1/4 in
- Thread Size
- 1/4"-18
- Body Size - Quick Connect Air Couplings
- 1/4 in
Description

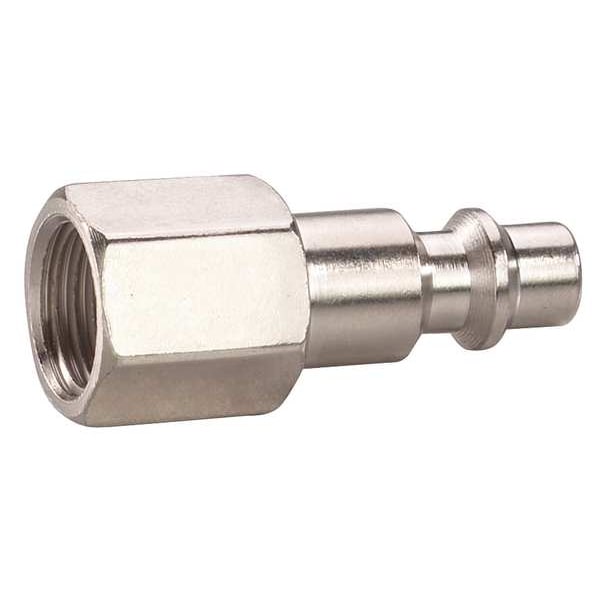

The SPEEDAIRE - 30E696 is a quick connect hose coupling designed for use on the end of a hose or tool inlet. Allows connection and disconnection without tools via the sleeve locking mechanism. Is rated for use in air/fluid line connections and includes a Buna-N seal to help prevent leakage under specified operating conditions. Is compatible with industrial interchange couplers that meet the stated size/specification requirements. It is rated for operation within -40°F to 150°F and has a maximum working pressure rating of 300 psi at 70°F. It is constructed to meet the stated size/specification requirements.
- Coupling Size: 1/4 in
- Body Size - Quick Connect Air Couplings: 1/4 in
- Hose Fitting Size: 1/4 in
- Hose Fitting Gender: Female
- Connection Type: NPT thread with 1/4" -18 thread size
- Coupling Component: Plug
- Coupling Locking Type: Sleeve
- Seal Material: Buna-N
- Max. Flow Rate: 1,132.67 lpm
- Standards: ISO 6150; MIL-C-4109F
