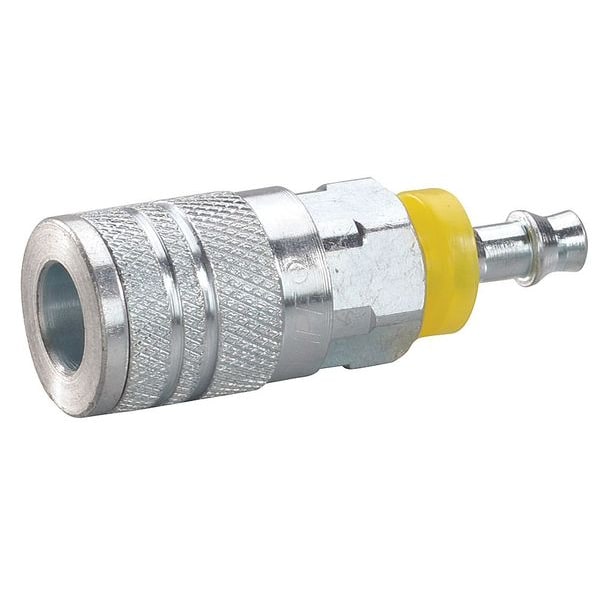

Coupler Body, Push On, 1/4, Steel

The SPEEDAIRE - 30E676 is a hose coupling intended for connection and disconnection without tools (per included design). it includes a seal for use in sealed flow applications. intended for pneumatic applications and fluid transfer within the specified pressure and temperature ratings. The coupling features a barbed male hose fitting compatible with 1/4 in inner diameter hoses and is compatible with industrial interchange plugs and couplers used with the specified coupling size.

• Hose Fitting: Male, 1/4 in size with barbed connection for connection of hoses to the barbed fitting.
• Coupling Size: 1/4 in industrial interchange socket with sleeve locking mechanism.
• Material and Finish: Constructed of steel with a zinc-plated coating for surface protection.
• Includes a poppet-type valve for flow control integrated within the coupling.
• Seal Material: Nitrile, rated for use in temperatures from -40°F to 150°F.
• Maximum Flow Rate: 1,132.67 L/min (based on specified test conditions).
• Maximum Working Pressure: 300 psi at 70°F (per specified rating).
• Application: for use on the end of hoses or air supply lines (per specified fitting and coupling configuration).
