Coupler Plug, (F)NPT, 1/4, Steel
Mfr # 30E736
Zoro # G4978355
product price: $2.69
/eaKey Features
Interchange Type
Tru-Flate-Automotive
Material
Steel
Coupling Component
Plug
Hose Fitting Gender
Female
Connection Type
NPT
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
30E736
Zoro #
G4978355
UPC #
190735613764
Country of Origin
China
Dimensions
Hose Fitting Size
3/8 in
Coupling Size
1/4 in
Thread Size
3/8"-18
Body Size - Quick Connect Air Couplings
1/4 in
Details
Item
Quick Connect Hose Coupling
Interchange Type
Tru-Flate-Automotive
Material
Steel
Coupling Component
Plug
Hose Fitting Gender
Female
Connection Type
NPT
Finish/Coating
Zinc Plated
Max. Flow Rate
1,132.67 lpm
Coupling Locking Type
Push-to-Connect
Seal Material
Buna-N
Includes Valve
No
Color
Silver
Temp. Range
-40 Degrees to 150 Degrees F
Application
Used on End of Hose or Tool Inlet
Barbed
No
Max. Working Pressure @ 70 F
300 psi
For Use With
Automotive Interchange Coupler
Description

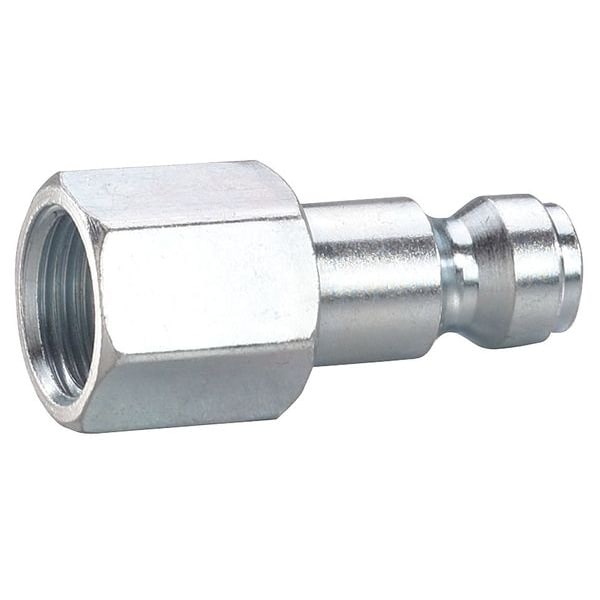

The SPEEDAIRE - 30E736 is a tool-free quick connect hose coupling for rapid connection and disconnection of air or fluid lines on the end of a hose or tool inlet. It includes a push-to-connect locking mechanism and is rated for sealed service when properly installed to the specified pressure range. The coupling is compatible with automotive interchange couplers and conforms to the Tru-Flate-Automotive interchange standard.
Key Features:
- Coupling type: Plug (male half of quick-connect fitting)
- Connection type: (F)NPT with 3/8"-18 thread size
- Hose fitting gender: Female
- Coupling size: 1/4 in with body size of 1/4 in
- Material: Steel body with zinc-plated finish
- Seal material: Buna-N
- Maximum flow rate: 1,132.67 lpm
- Maximum working pressure at 70°F: [omit from description]
- Operating temperature range: [omit from description]
- Non-barbed fitting
