Shop SPEEDAIRE

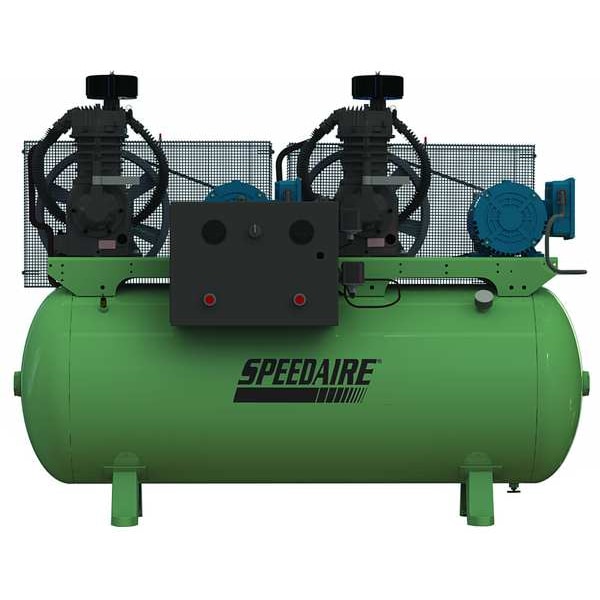

Elec. Air Compressor, Duplex, 5HP, 32.8CFM

  • Mfr # 35WC60

  • Zoro # G9470824

product price:  $9,642.99
/ea
Additional $290.00 delivery surcharge applies per item.
See details

Key Features

Tank Size
120 gal.
Phase
1
HP
5 HP
Voltage
208 to 230V
Tank Type
Horizontal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
35WC60
Zoro #
G9470824
UPC #
190735618356
Country of Origin
United States

Dimensions

Tank Size
120 gal.
Overall Height
51 in
Overall Length
69 in
Tank Size - Air Compressor
120 gal
Overall Width
32 in
Outlet Size
3/4 in
Inlet Size
3/4 in
Air Tank Size
120 gal
Wire Rope Length
69 in

Details

Phase
1
HP
5 HP
Voltage
208 to 230V
Tank Type
Horizontal
Max. Pressure
175 psi
Includes
Manual Drain Valve, Motor Starter, Oil Sight Glass, Pressure Gauge, Pressure Safety Valve
Compressor Type
Tank Mounted Duplex
Free Air CFM @ Max. Pressure
32.8 cfm
Lubrication Type
Splash Lubricated
Motor Type
Open Dripproof
Compressor Package Type
Base Model
Standards
ASME Approved, CSA
Style - Air Compressor
Duplex
Pump RPM
700
Cylinder Material
Cast Iron
Input Voltage - Air Compressor
208 to 230V AC
Finish
Powder Coated
Control
Pressure Switch
On Pressure Switch Setting
135 psi
Item
Electric Air Compressor
Hz
60
Pump Location - Air Compressor
Tank Mounted
Off Pressure Switch Setting
175 psi
Lubrication Type - Air compressor
Splash Lubricated
Tank Style - Air Compressor
Horizontal
Number of Stages - Air Compressor
2
Max. Pressure - Air Compressor
175 psi
Phase - Electrical
1
Item - Air Compressor
Stationary Air Compressor
HP - Air Compressor
5.0 hp
Amps
44A
Pump Oil Capacity
2 qt
dBA @ 3 Feet
83
Number of Stages
2
Free Air CFM @ Max. Pressure - Air Compressor
32.8
Enclosure
Open Drip Proof
ASME Tank
Yes
(F)NPT Outlet
3/4 in
Duty Cycle
Continuous
Pump Type
Reciprocating
Free Air Flow Rate @ Maximum Pressure
33.2 cfm
Maximum Operating Pressure
175 psi
Frequency
60 Hz
Current Rating
44 A
Sound Level
83 dBA
Pump Style
Duplex
Outlet Gender
Female
Input Voltage
208-230V AC
Outlet Type
NPT
Maximum Speed
700 RPM
Pump Location
Top Mount
Output Power
5 hp
Enclosure Type
Open Dripproof
Air Tank Style
Horizontal
Control Type
Pressure Switch

Description

Electric Air Compressor, Lubrication Type Splash Lubricated, Air Tank Style Horizontal, Number of Stages 2, Output Power 5 hp, Free Air Flow Rate @ Maximum Pressure 33.2 cfm, Maximum Operating Pressure 175 psi, Air Tank Size 120 gal, Input Voltage 208-230V AC, Phase Single, Frequency 60 Hz, Compressor Package Type Base Model, Pump Style Duplex, Pump Type Reciprocating, Pump Location Top Mount
